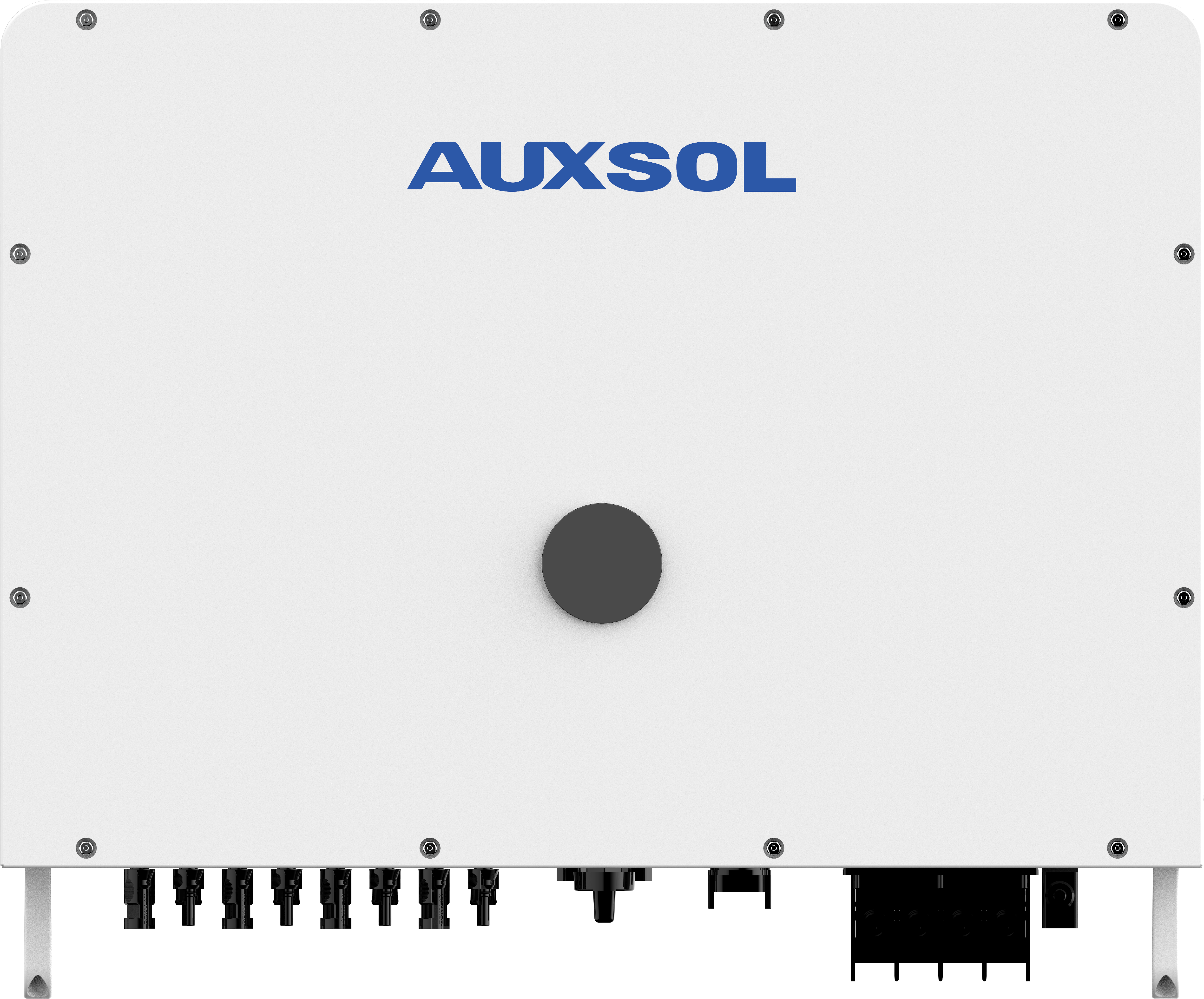

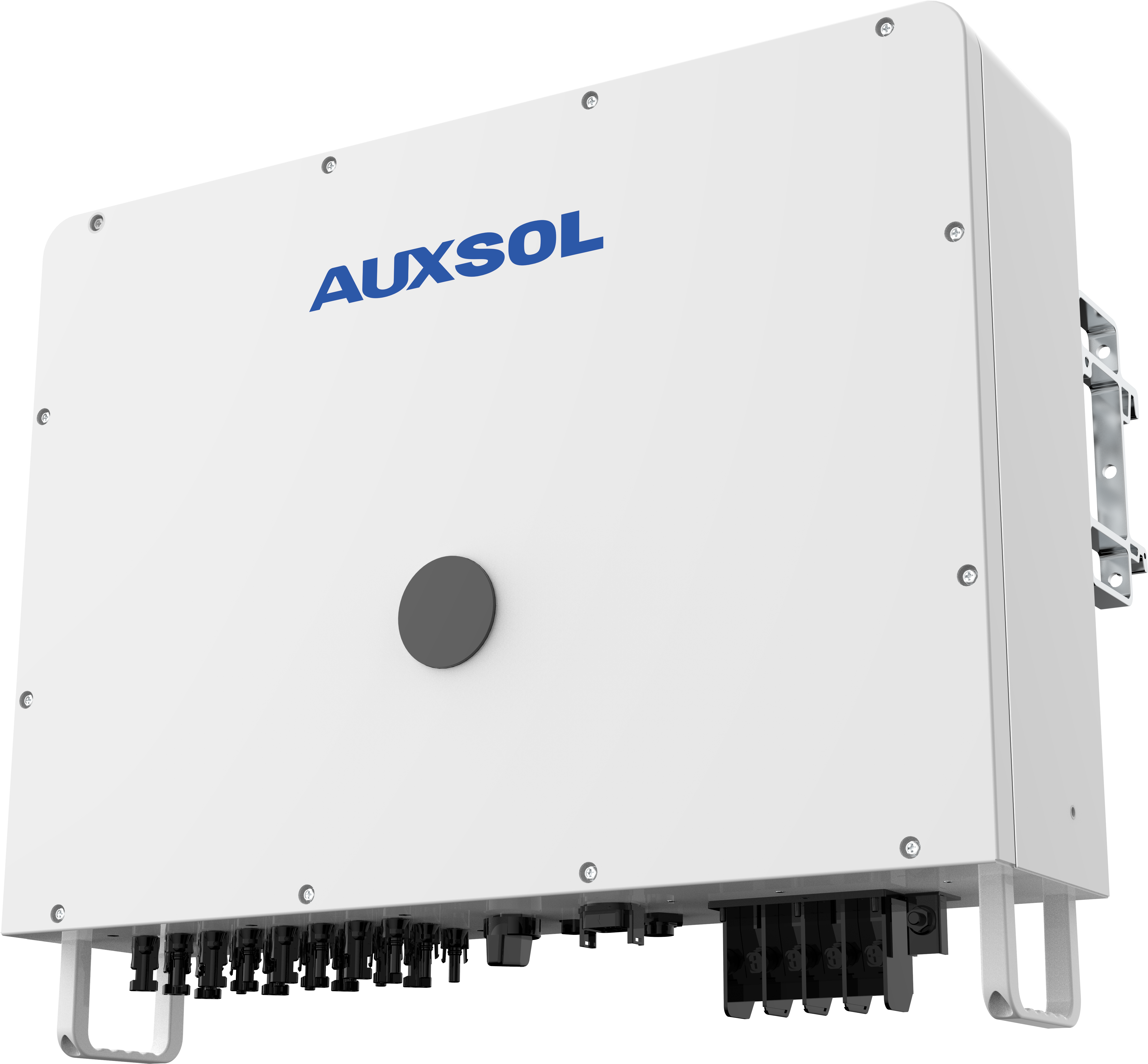

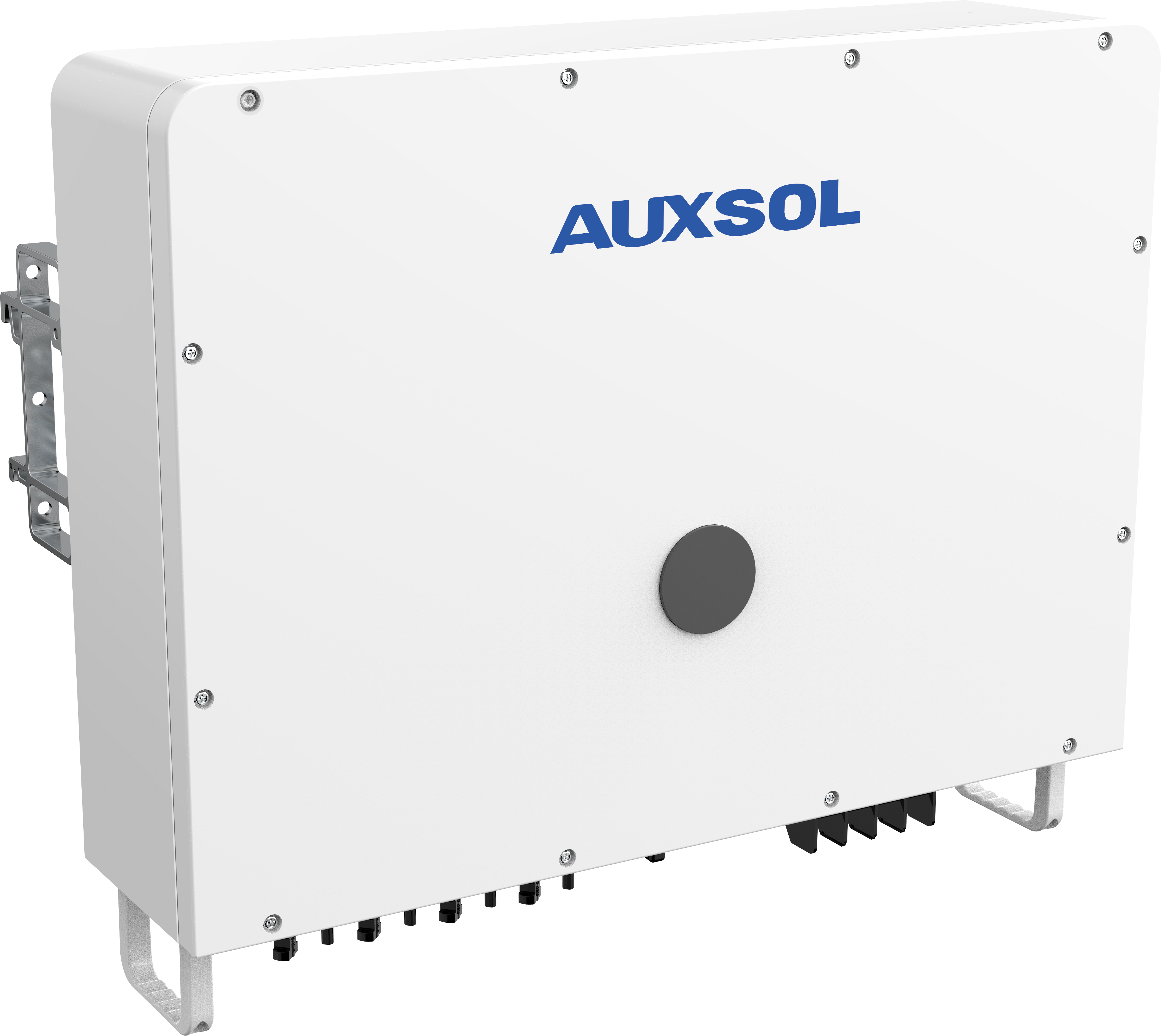

4MPPT|ASN-(50-80)TL-G2

Compact and lightweight, the AUXSOL ASN series is the perfect match for C&I. The ASN series boasts excellent durability, an ultra-long lifespan under modern industrial standards, and an IP66 protection rating, suitable for indoor and outdoor environments.

Key Features

Product Specifications

Datasheet
Datasheet
Technical Data ASN-50TL-G2 ASN-60TL-G2   ASN-70TL-G2     ASN-75TL-G2   ASN-80TL-G2

Max.input power

75kW

90kW

105kW

112.5kW

120kW

Max.input voltage

 1100V

Rated voltage

 630V

Start-up voltage

 180V

MPPT voltage range

 150-1000V

Max.input current

40A*4

 48A*4

Max.short circuit current

50A*4

 60A*4

MPPT number

4

 4



Datasheet
Datasheet

Contact us for more information
