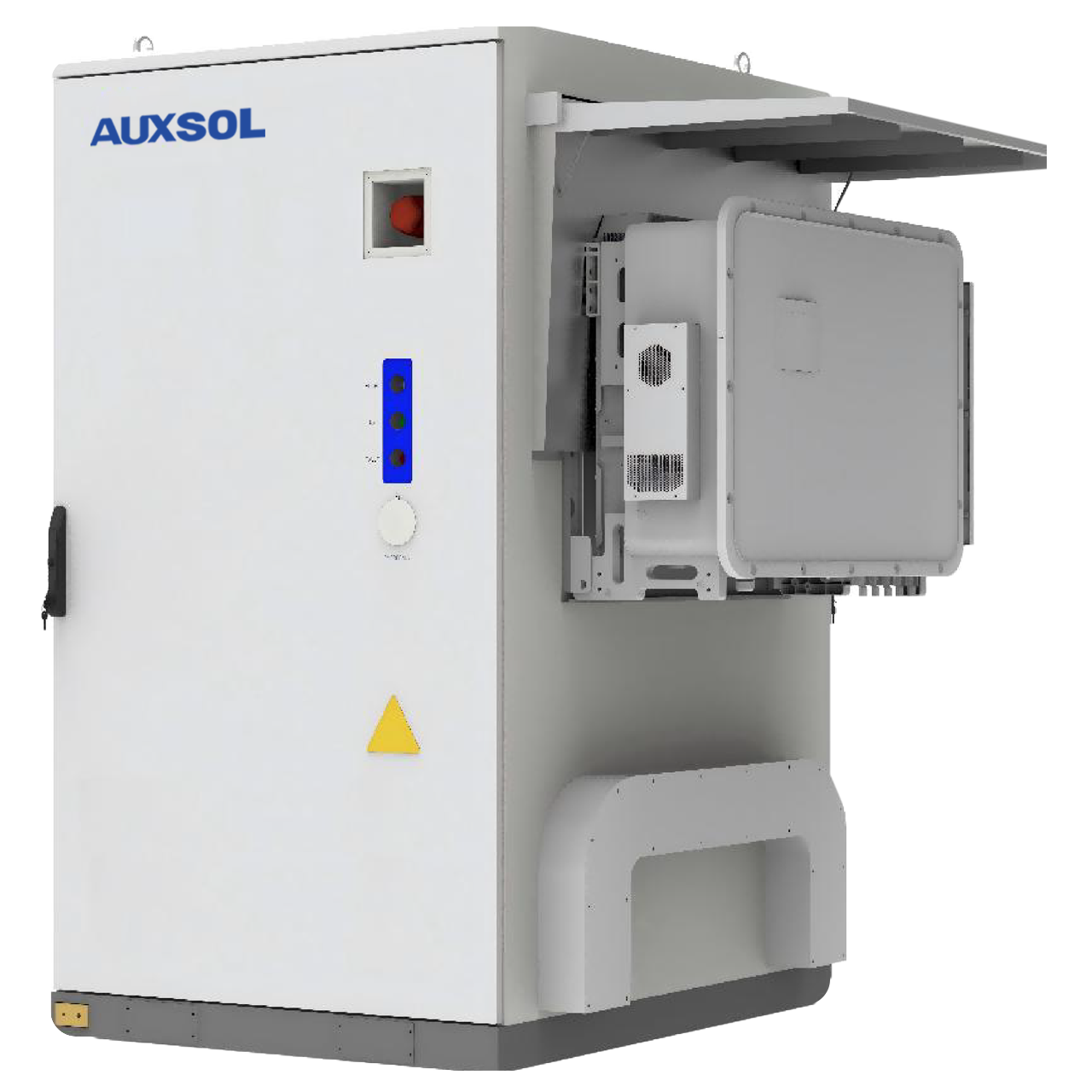

The air-cooled outdoor cabinet, model EESB-WI240-02ULO, is an integrated energy storage device designed to meet the energy storage demands of industrial and commercial sectors. This device features high efficiency, rich functions, one-time delivery, and strong environmental adaptability. It is suitable for applications such as peak-valley arbitrage in industrial and commercial sectors, demand control, area expansion, demand response, and photovoltaic-storage-charging microgrids.
Supports PV input
DC-coupled
High efficiency
Modular design for easy maintenance
| Battery Cabinet | |
|---|---|
|
Cell Type |
LFP / 314 Ah |
|
Pack Configuration |
24.1 kWh / 1P24S |
|
System Configuration |
241 kWh / 1P240S |
|
Rated DC Voltage |
768 V |
|
DC Voltage Range |
672 ~ 864 V |
|
Max. Charge/Discharge Rate |
0.5 P |
|
Max. Depth of Discharge |
100% (25 ± 2 ℃) |
|
Cycle Life |
≥8000 cycles |
|
PV Input |
|
|
Max. input power |
200kW |
|
PV Voltage Range |
150V~950V |
|
MPPT |
10 |
|
MAX. Input Current |
42A*4 |
|
AC Side |
|
|
Rated Output Power |
100kW |
|
Rated AC Voltage |
400 V |
|
AC Voltage Range |
±15% |
|
Grid Type |
3W+N+PE |
|
Rated Frequency |
50 Hz / 60 Hz |
|
Power Factor |
0.99 / -0.8 ~ +0.8 |
|
THDi |
≤3% |
|
DC Ratio |
＜0.5% Ipn |
|
General |
|
|
Max. Round Trip Efficiency |
90% |
|
Communication |
Modbus TCP/IP |
|
Fire Suppression System |
Aerosol |
|
Ingress Rating |
IP55 |
|
Cooling |
Air cooling |
|
Operating Temperature |
-25℃~55℃ (Derating after 45℃) |
|
Anticorrosion Rating |
C4 (C5 optional) |
|
Humidity |
0~95% RH (non-condensing) |
|
Altitude |
3000m (Derating above 2000m) |
|
Dimensions (W*D*H) |
1250*1450*2250 mm |
|
Weight |
2670kg |
|
Safety/EMC |
UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 |
|
Grid code |
EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11 |
