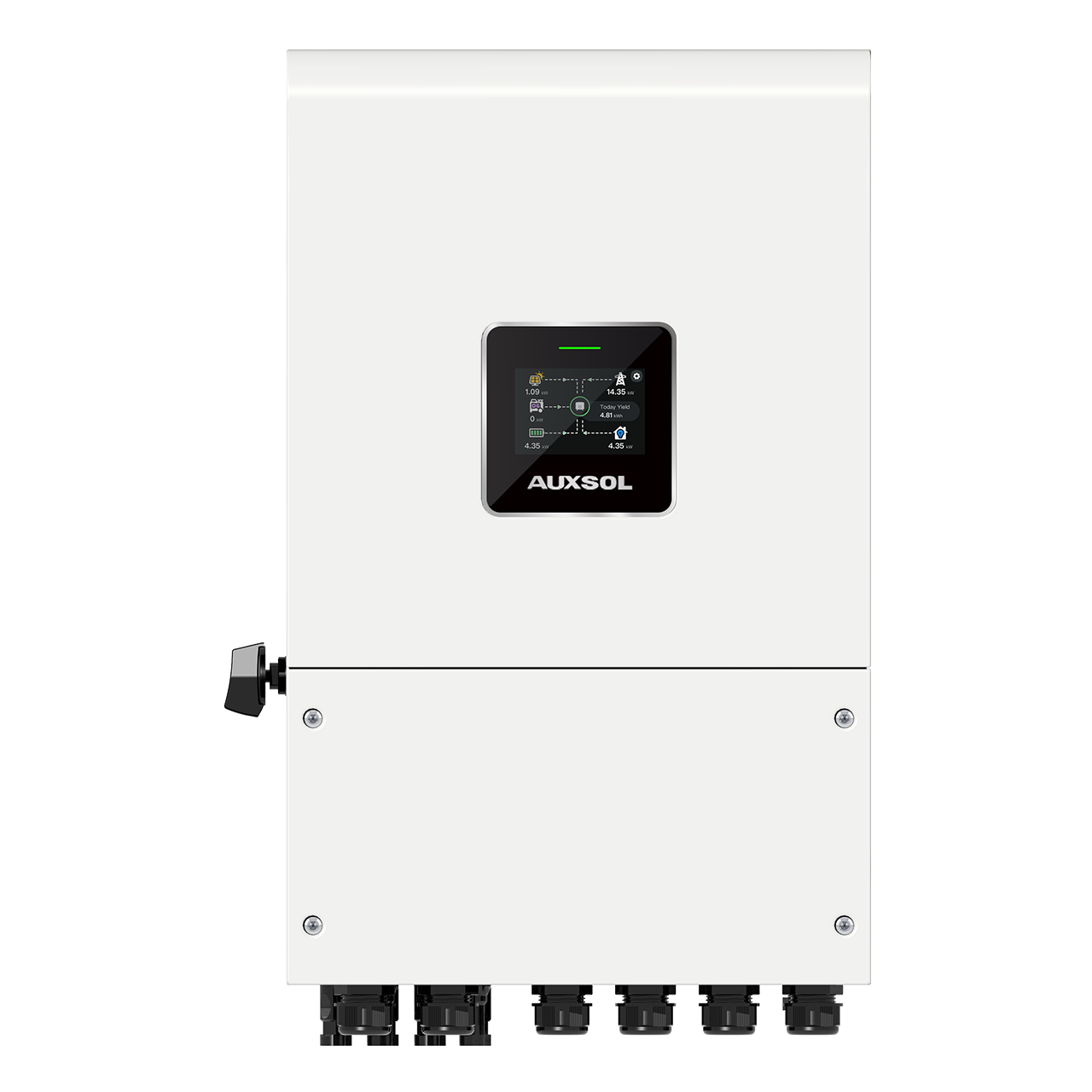

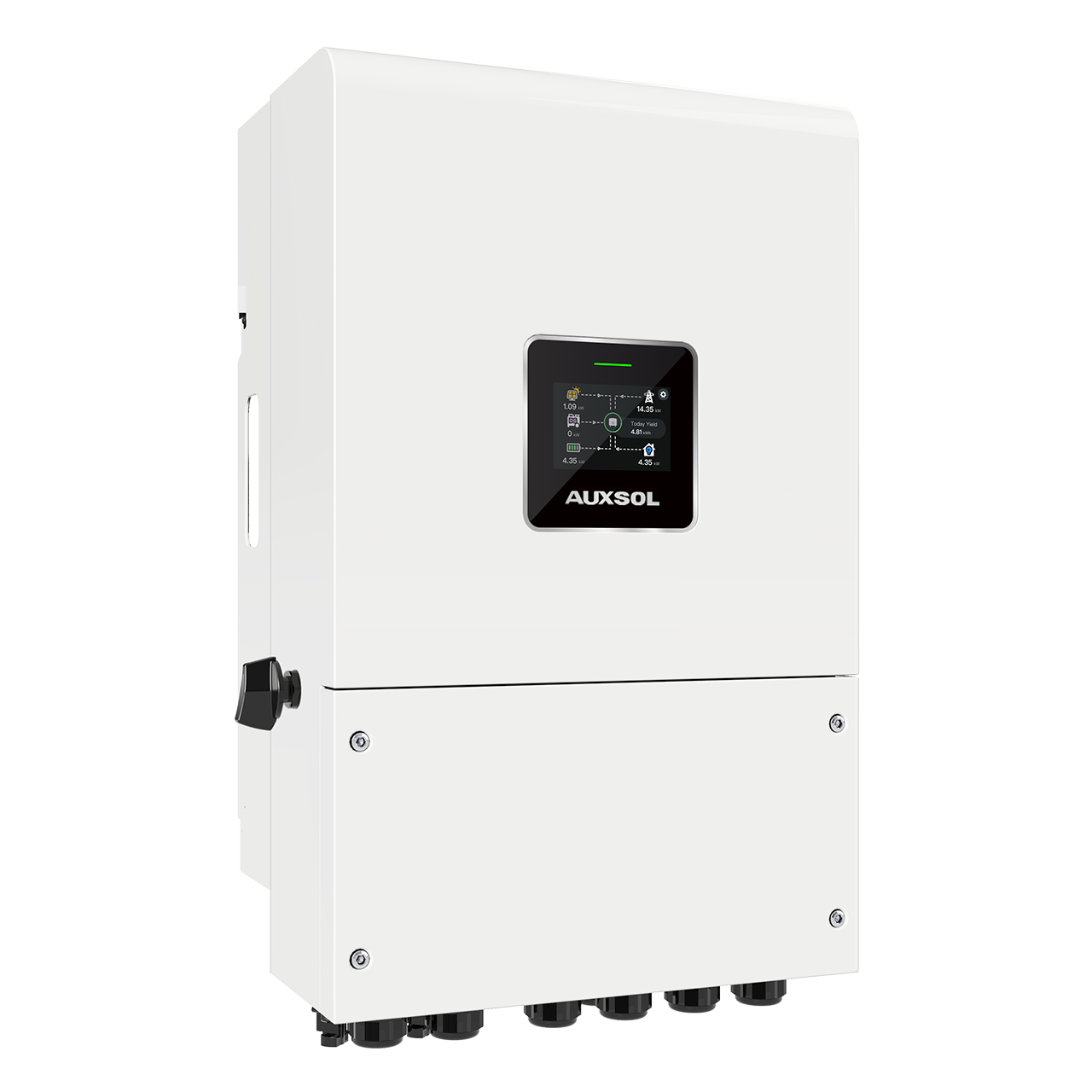

Compact and lightweight, the AUXSOL AH series is the perfect choice for residential installations. The AH series boasts excellent durability, an ultra-long lifespan under modern industrial standards, and an IP66 protection rating, suitable for indoor and outdoor environments.
Start-up voltage 60V
Remote diagnosis &update
Wide range of MPPT voltage
Easy setting of smart working modes
Max. efficiency 97.7%
| Technical Data |
AH-5R2LV-G1
|
AH-6R2LV-G1
|
AH-7.5R2LV-G1
|
AH-8R2LV-G1
|
AH-10R2LV-G1
|
| Rated voltage |
330V
|
||||
| MPPT voltage range | 90-435V | ||||
| MPPT number | 2 | ||||
| Max. input strings number | 2 | 3 | 4 | ||
| Battery voltage range | 40-60V | ||||
| Max. charge / discharge current | 112A | 135A | 190A | 190A | 210A |
| Back-up switch time |
＜4ms
|
||||
| Rated output voltage | 2L/N/PE, 127 V / 220 V | ||||
