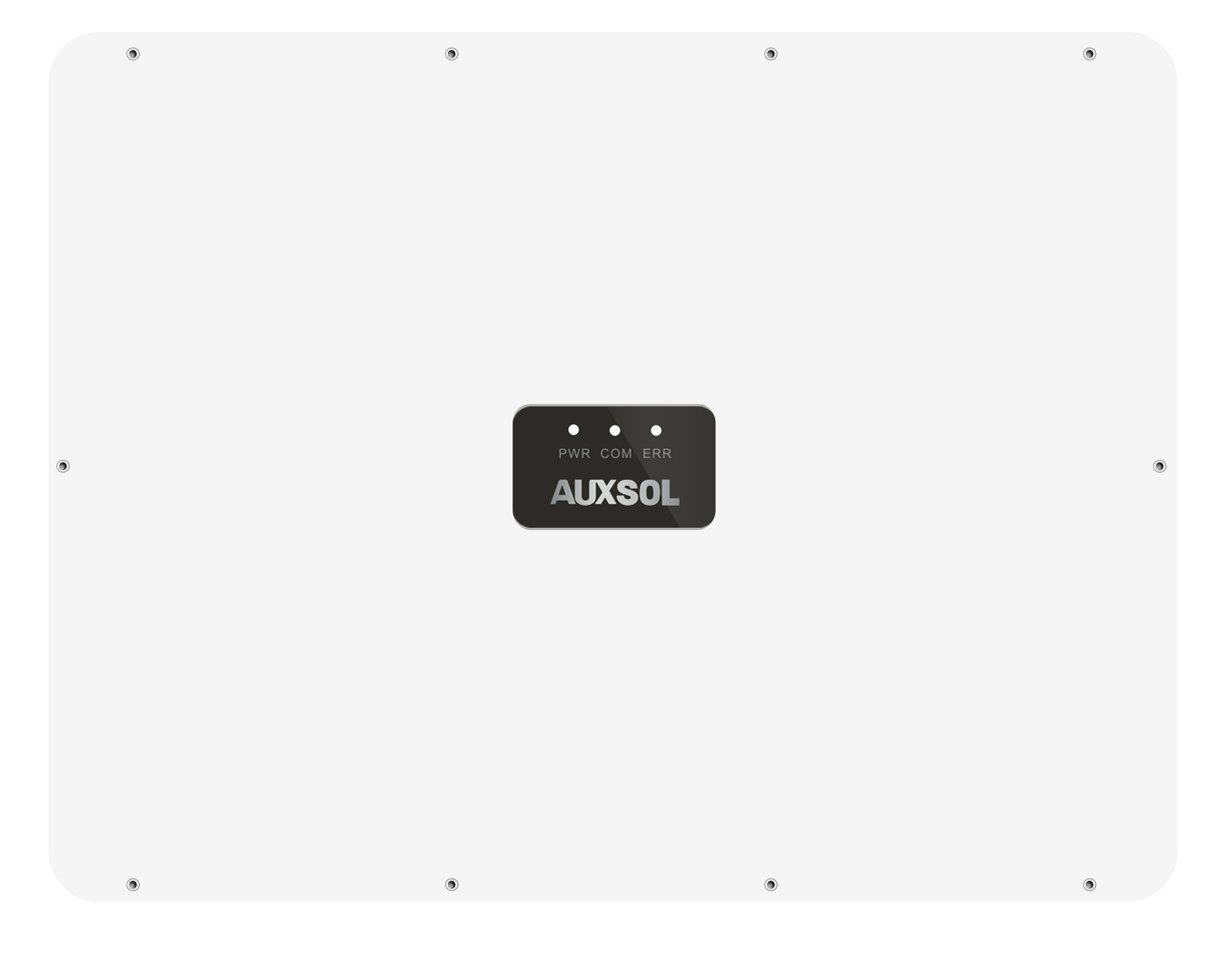

AUXSOL new-design ASN 33-50kW series grid-tied inverters, safe, reliable and beautiful, which is the perfect match for household scenarios. Manufactured for durability and longevity under modern industrial standards, it can be mounted either in your home or outside.
High Efficiency
Max. Efficiency 98.6%,MPPT Max. Efficiency 99.8%
180V low start-up voltage enables early startup and more energy generation
Smart
Ultra-wide grid voltage design with automatic voltage regulation technology ensures uninterrupted operation even under unstable grid conditions
User-Friendly
Support RS485, WiFi, LAN, Suspec different communication methods
Quick sweep access to AUXSOL Cloud, support remote upgrade and setup
3-way MPPT design to accommodate multi-orientation roofs
Safe and Reliable
Supports I-V curve scanning, accurately identifying string anomalies
Intelligent AFCI reduces fire risk
Pure film capacitors with a 25-year design lifespan.
Economical and Cost-Saving
Intelligent string monitoring, rapid identification of faulty strings, reducing safety risks (Optional)
Supports high power component access, low system installation and cable costs
| Technical Data | ASN-33TL-G3 | ASN-36TL-G3 | ASN-40TL-G3 | ASN-50TL-G3 |
| Start-up voltage | 180V | |||
| MPPT voltage range | 160-1000V | |||
| Max.input current | 40A/40A/20A | 40A/40A/20A/20A | 40A/40A/20A/ 32A | |
| MPPT number | 3 | 4 | ||
| Max. input strings number | 5 | 6 | 7 | |
| Rated output power | 33kW | 36kW | 40kW | 50kW |
| Max.apparent output power | 36.3kVA | 39.6kVA | 44kVA | 55kVA |
| Rated grid output current | 47.6A | 52A | 57.7A | 72.2A |
