并网逆变器

三相

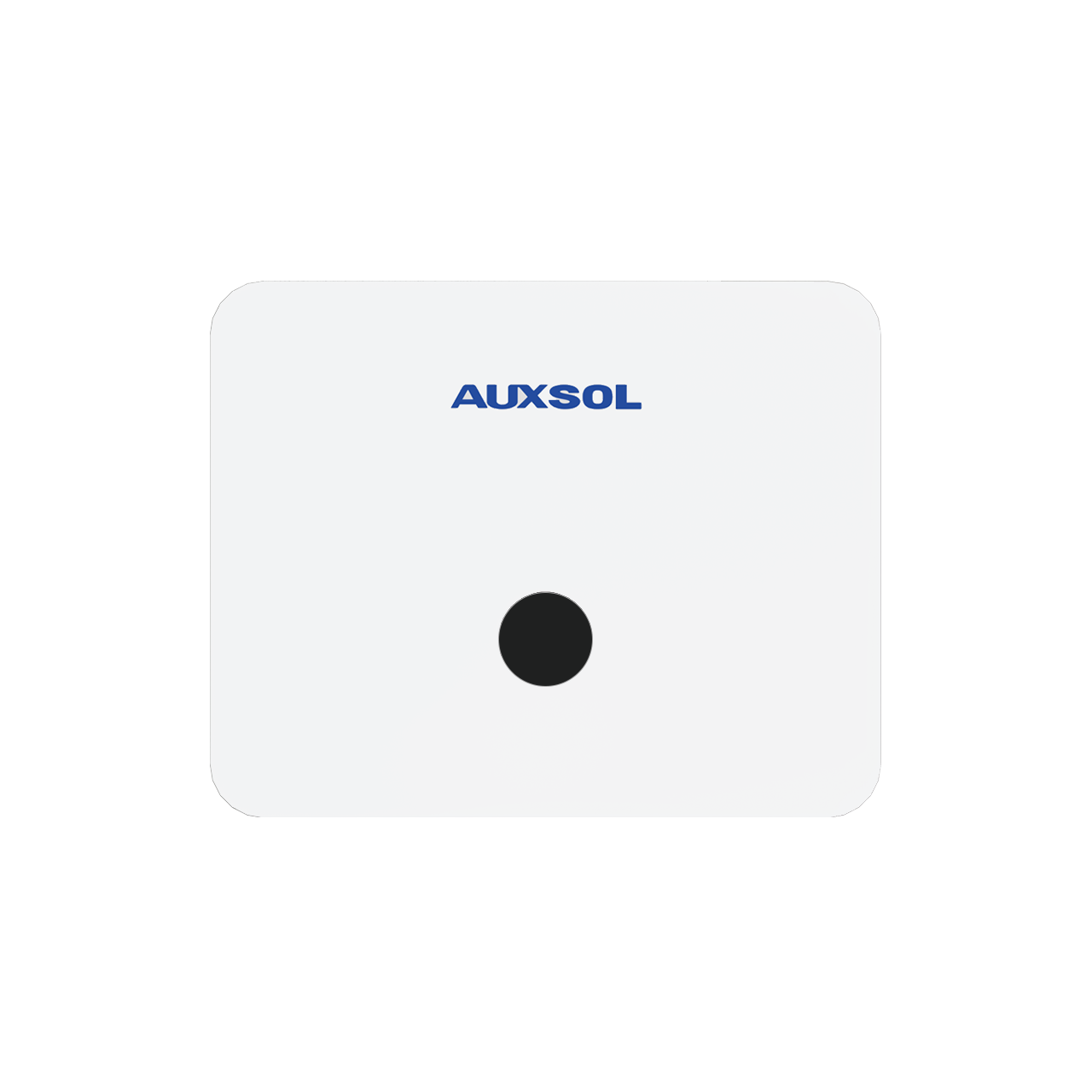

ASN-(33-50)TL-G3

AUXSOL 新款 ASN 33-50kW 系列并网逆变器，安全、可靠且外观美观，是家庭场景的理想之选。该产品按照现代工业标准制造，经久耐用，既可安装在室内，也可安装在室外

主要特点

产品规格表

数据表
数据表
Technical Data ASN-33TL-G3 ASN-36TL -G3 ASN-40TL -G3 ASN-50TL -G3
启动电压 180V
MPPT 电压范围 160-1000V
最大输入电流 40A/40A/20A 40A/40A/20A/20A 40A/40A/20A/32A
MPPT 路数 3 4
最大输入组串数 5 6 7
额定输出功率 33kW 36kW 40kW 50kW
最大视功率 36.3kVA 39.6kVA 44kVA 55kVA
额定电网输出电流 47.6A 52A 57.7A 72.2A

数据表
数据表
