电表

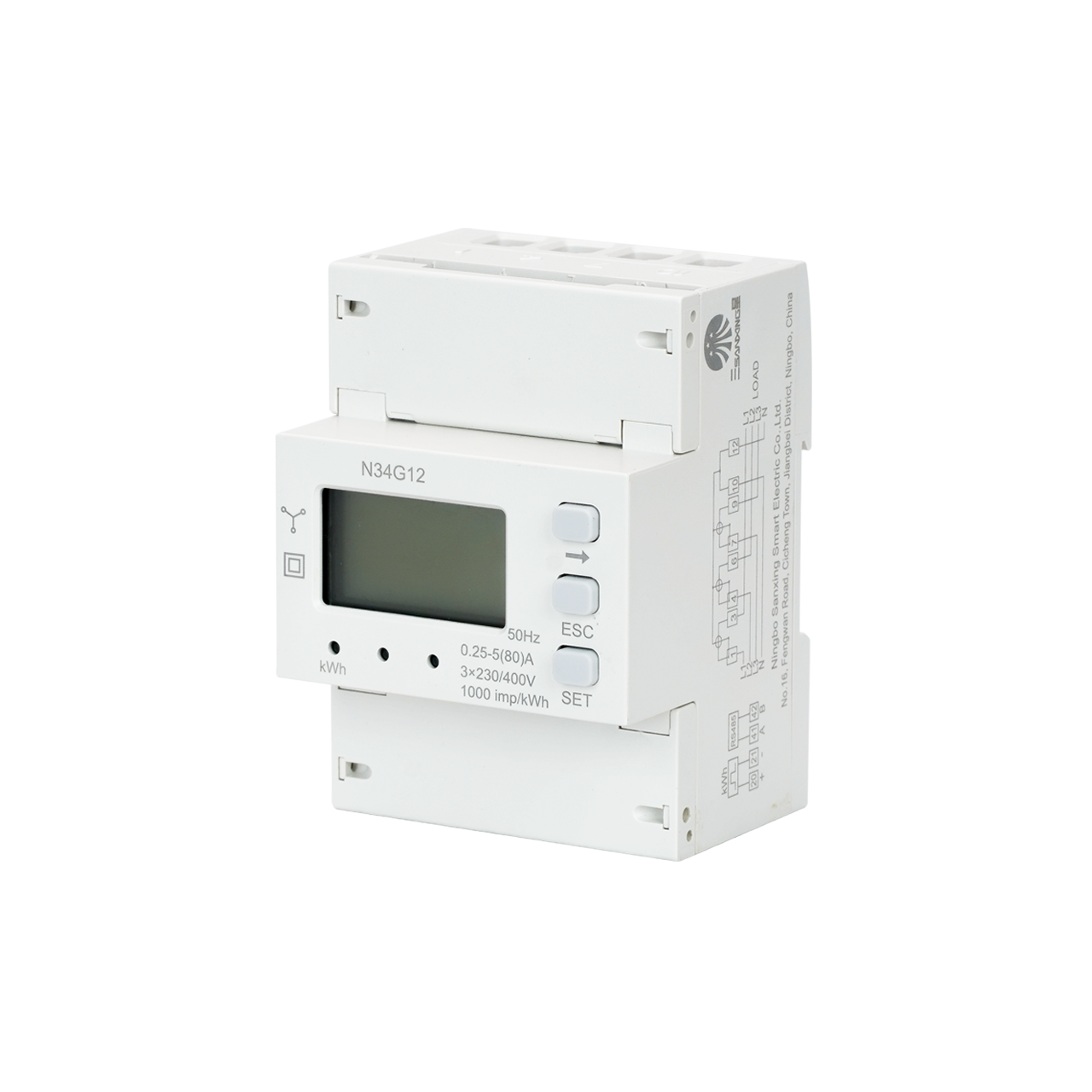

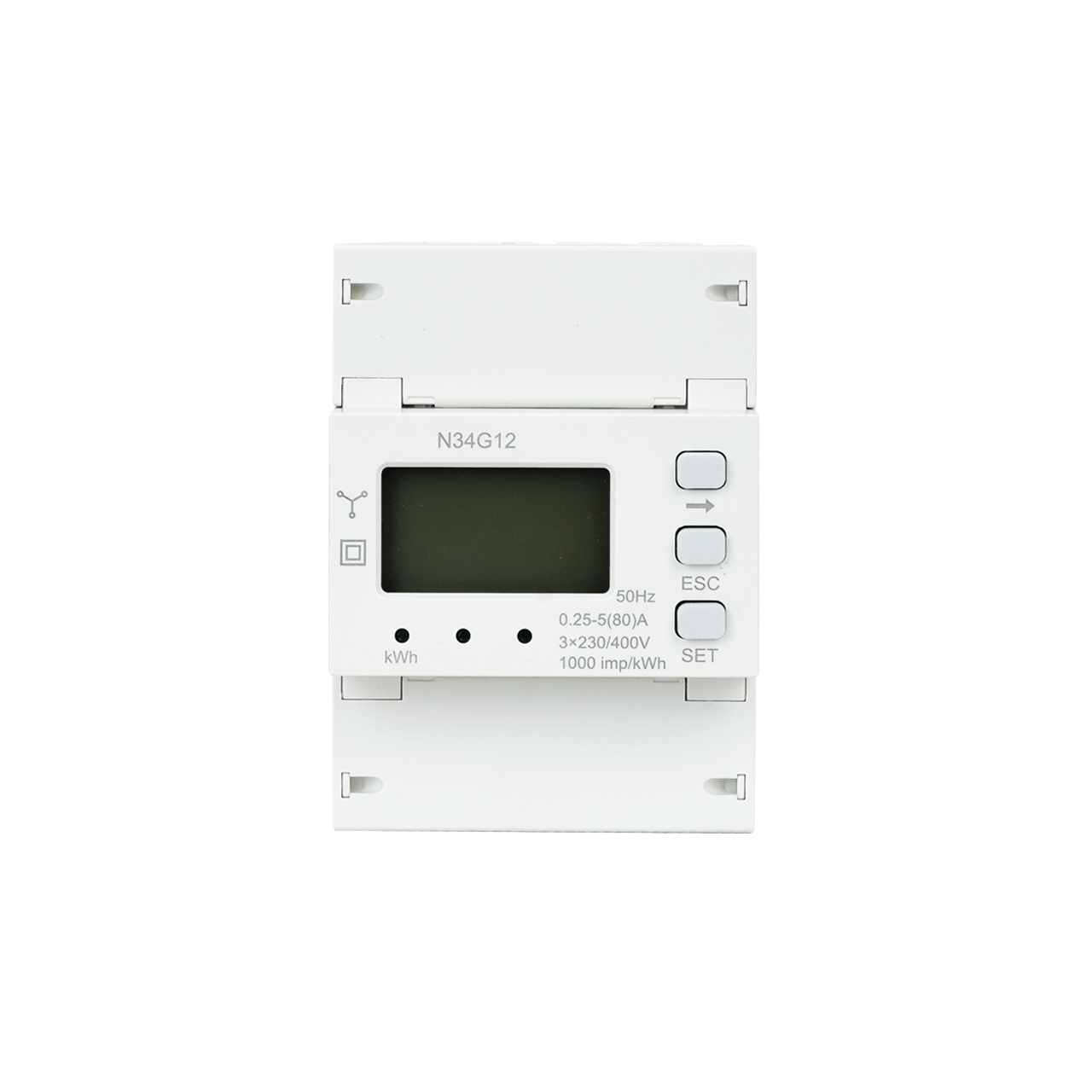

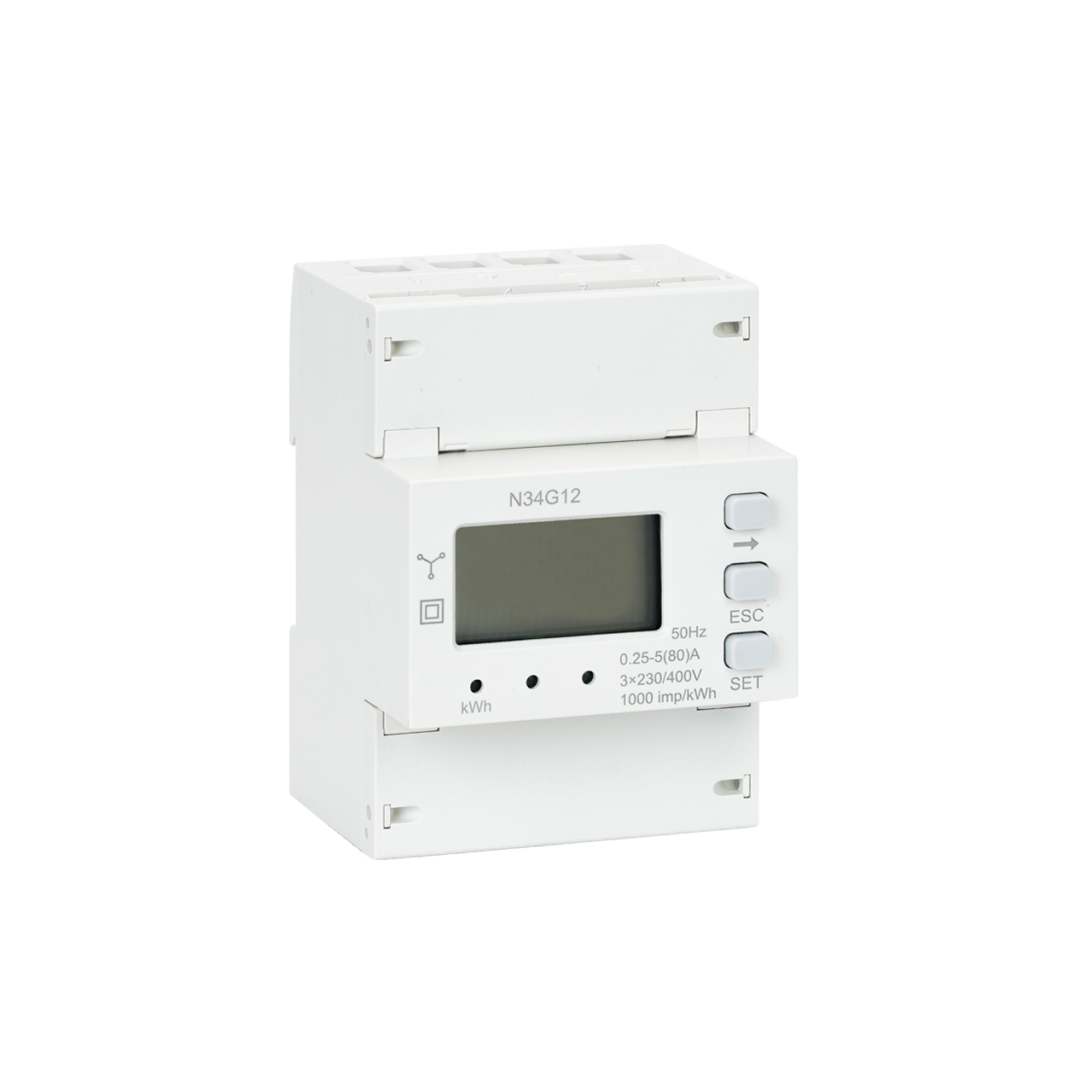

N34G12导轨式电表采用专用计量芯片及模块化设计,具有高功能、多精度、小体积、响应速度快、高稳定性等特点
产品可适用于三相四线、单相二线等多种电力系统,可测量有功电能、电压、电流、有功功率、无功功率、频率、功率因数、分相功率等参数。瞬时数据刷新最高可达20ms,通信响应时间小于30ms

N34G12导轨式电表配备:
1路有功电能脉冲输出
1路RS485通信接口(Modbus RTU)
RS485默认通信速率为9600bps,支持定制更高通信速率
支持有功光电脉冲输出信号
可适配不同型号的逆变器

N34G12导轨式电表具有良好的电磁兼容性(EMC)

产品已通过以下相关标准认证/符合相关标准:
国际标准 GB/T 17215
GB/T 15284
GB/T 17883
电力行业标准 DL/T 614
IEC 62053-21

主要特点

产品规格表

数据表
数据表

了解更多产品信息
请随时与我们联系
