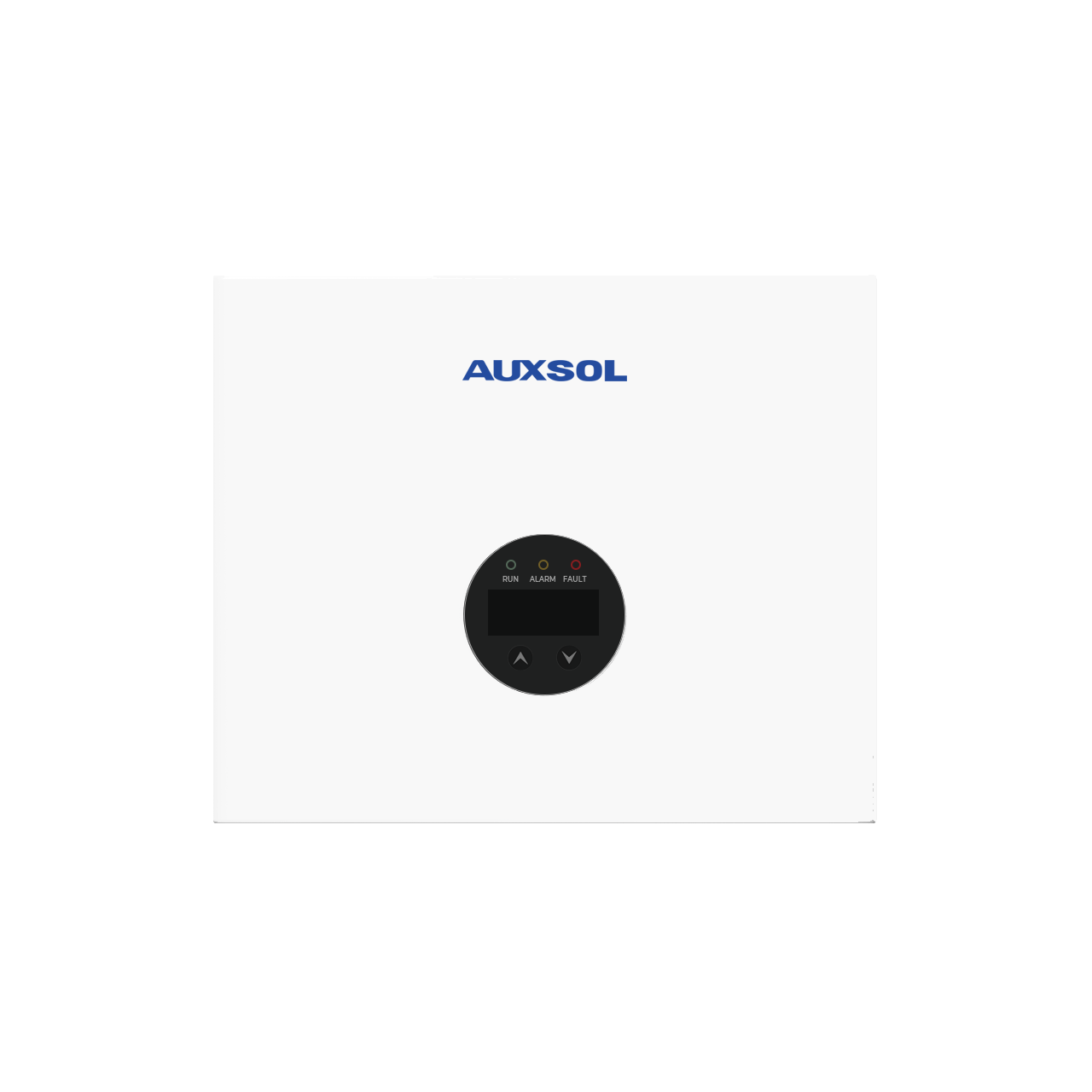

AUXSOL ASN系列体积小，重量轻，是住宅安装的完美选择。ASN 系列在现代工业标准下具有超长使用寿命，具有 IP66 防护等级。
高效
单串最大电流18A，兼容210型大尺寸组件
支持1.5倍DC/AC超配
40V低启动电压，可实现早期启动并增加发电量
智能
超宽电网电压设计，自动稳压技术，复杂电网不停机
用户友好
静音设计(＜35dB)
安全可靠
防护等级IP66,适应各种恶劣工况环境
AFCI智能防拉弧功能，降低火灾风险
经济省钱
环境温度45℃下不降功率，更可靠，多发电
| 技术数据 | ASN-3.6SL-G2 | ASN-4SL-G2 | ASN-5SL-G2 | ASN-6SL-G2 |
|---|---|---|---|---|
|
启动电压 |
40V |
|||
|
MPPT电压范围 |
40-520V |
|||
|
最大输入电流 |
18A/18A |
|||
|
MPPT |
2 |
|||
|
最大输入字符串数 |
2 |
|||
|
最大输出功率 |
3.96KW |
4.4KW |
5.5KW |
6KW |
|
额定电网输出电流 |
16.4A |
18.2A |
22.7A |
27.3A |
|
最大输出电流 |
18A |
20A |
25A |
27.3A |
