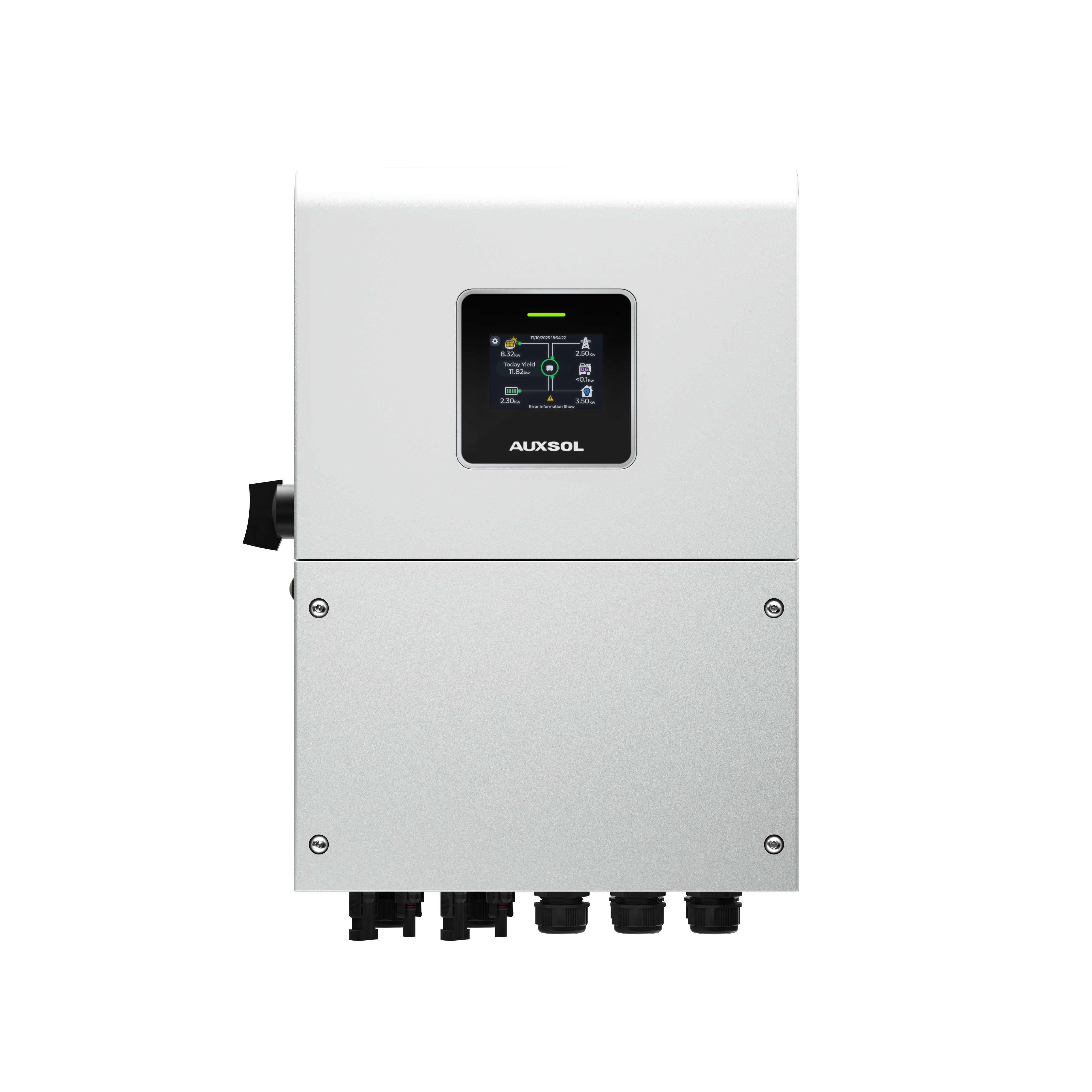

ASG-(3.6-6)SL-ZL-G2

AUXSOL ASG 系列体积小巧、重量轻，是住宅安装的理想之选。该系列产品具有出色的耐用性，在现代工业标准下使用寿命超长，并具备 IP66 防护等级，适用于室内和室外环境

主要特点

启动电压60v
远程诊断与更新
MPPT电压范围广
轻松设置智能工作模式
最大效率97.7%

产品规格表

数据表

参数数据	ASG-3.6SL-ZL-G2	ASG-4SL-ZL-G2	ASG-6SL-ZL-G2
额定电压	360V
MPPT电压范围	90-500V
MPPT数量	2
最大输入组串数量	2
电池电压范围	40-60V
最大充/放电电流	90A/90A	100A/100A	135A/135A
后备切换时间	＜3ms
额定输出电压	1/N/PE,220V/230V
