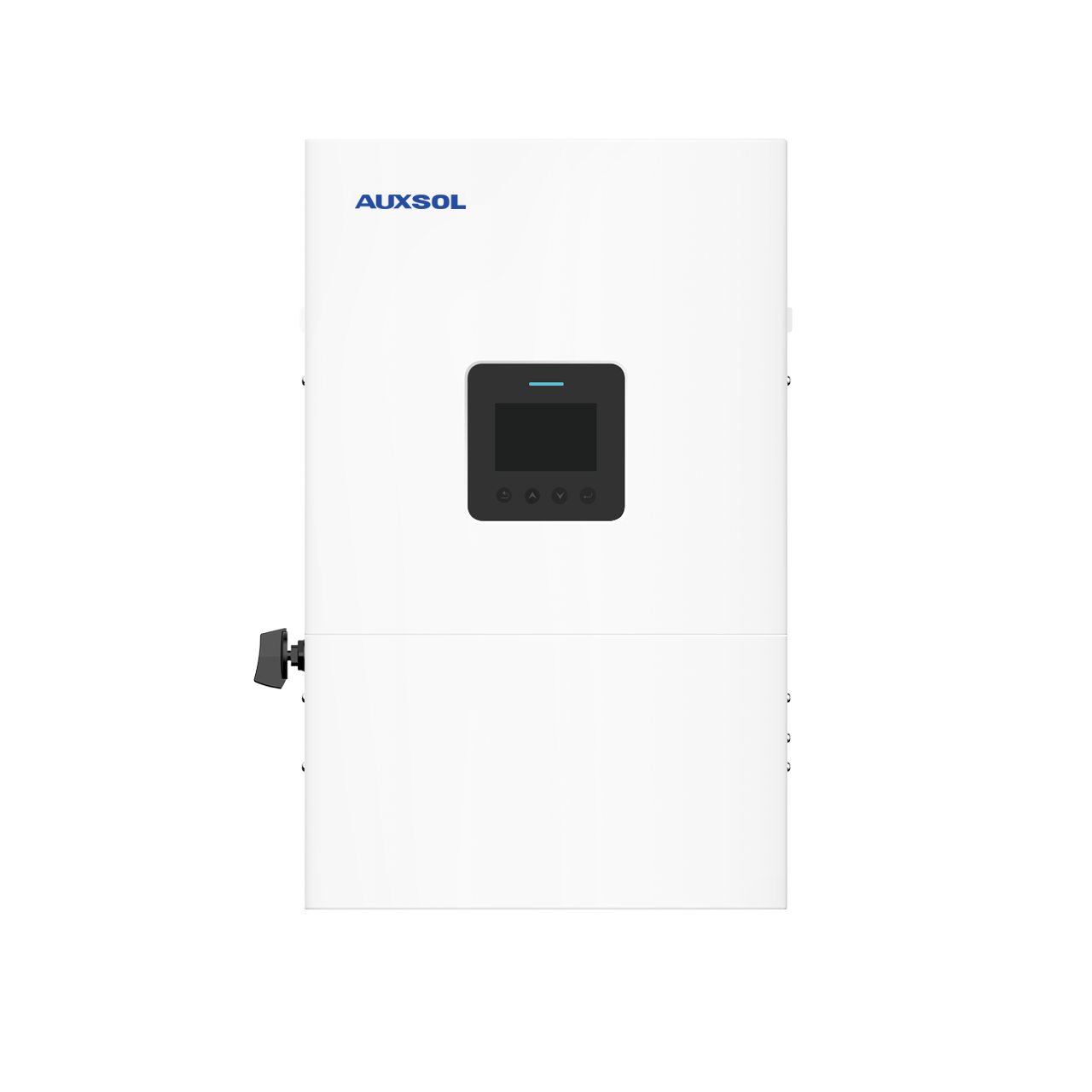

AUXSOL ASG 系列体积小巧、重量轻，是住宅安装的理想之选。该系列产品具有出色的耐用性，在现代工业标准下使用寿命超长，并具备 IP66 防护等级，适用于室内和室外环境
启动电压60v
远程诊断与更新
MPPT电压范围广
轻松设置智能工作模式
最大效率97.7%
| 参数数据 |
ASG-8SL-ZL-G2
|
ASG-10SL-ZL-G2
|
| 额定电压 |
360V
|
|
| MPPT电压范围 | 90-450V | |
| MPPT数量 | 2 | |
| 最大输入组串数量 | 4 | |
| 电池电压范围 | 40-60V | |
| 最大充/放电电流 | 190A/190A | 210A/210A |
| 后备切换时间 |
＜4ms
|
|
| 额定输出电压 |
220V/230V. L/N/PE
|
|
