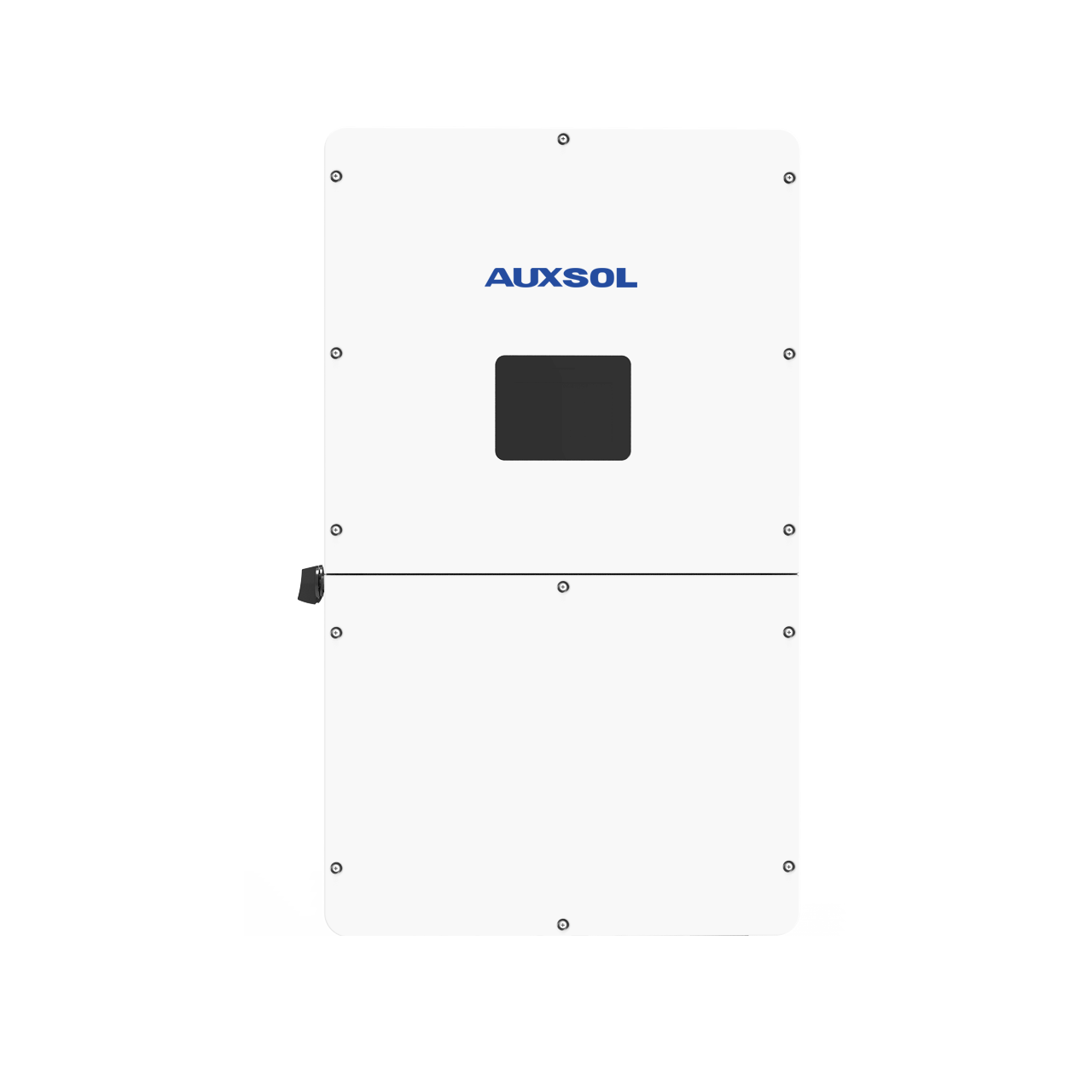

Compact and lightweight, the AUXSOL ASG series is the perfect choice for residential installations. The ASG series boasts excellent durability, an ultra-long lifespan under modern industrial standards, and an IP66 protection rating, suitable for indoor and outdoor environments.
String current up to 16A
Wide range of MPPT voltage
Remote diagnosis & update
24-hour smart energy management
Easy setup of smart operating mode
| Technical Data | ASG-30TL-ZH | ASG-40TL-ZH | ASG-50TL-ZH |
|---|---|---|---|
|
Rated voltage |
600V |
||
|
MPPT voltage range |
150-850V |
||
|
Max. input current |
40A*3 |
40A*4 |
|
|
Max.short circuit current |
50A*3 |
50A*4 |
|
|
MPPT number |
2 |
4 |
|
|
Max. input strings number |
6 |
8 |
|
|
Max. charge / discharge current |
80A+80A |
||
|
Back-up switch time |
<10ms |
||
