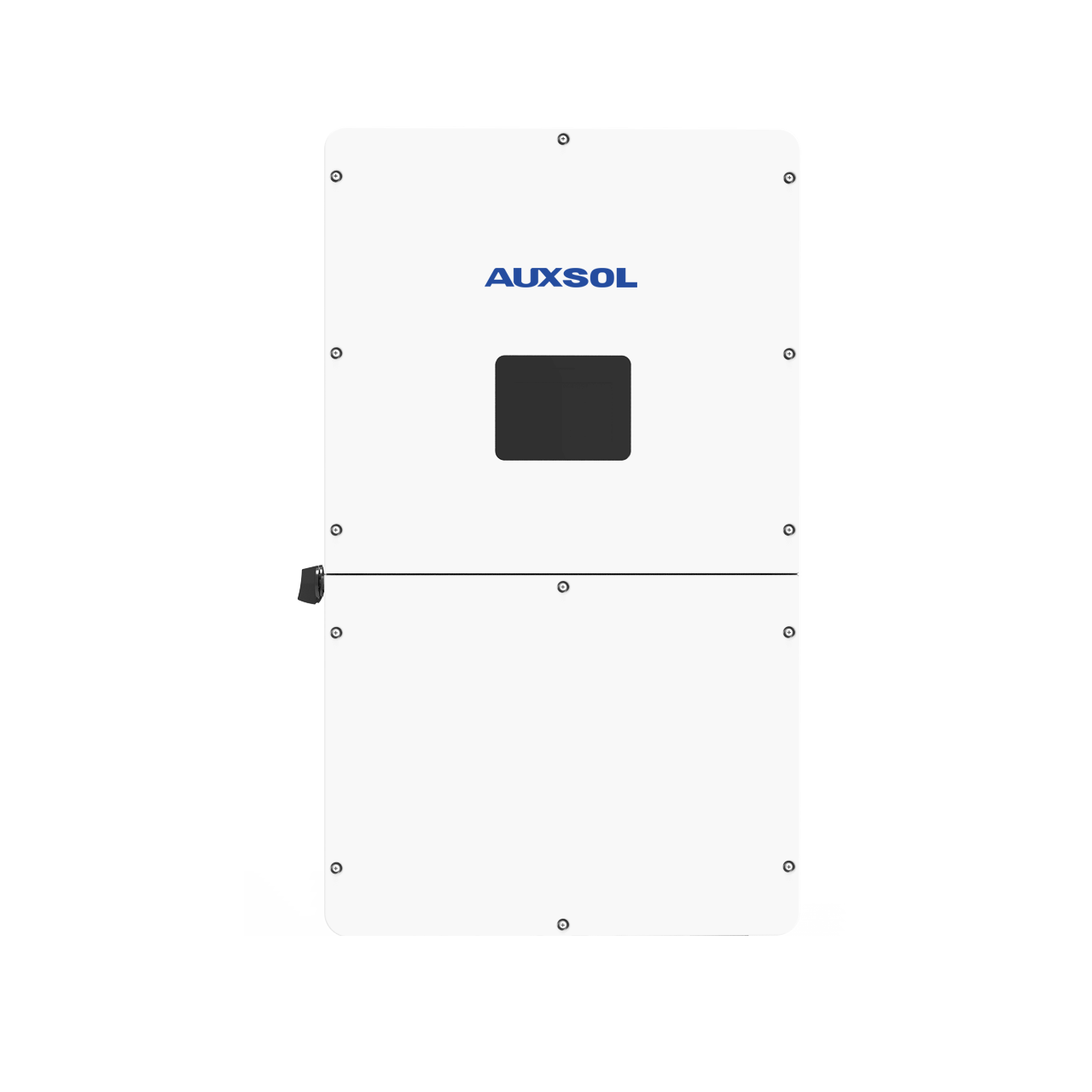

Compact and lightweight, the AUXSOL ASG series is the perfect choice for residential and C&I installations. The ASG series boasts excellent durability, an ultra-long lifespan under modern industrial standards, and an IP66 protection rating, suitable for indoor and outdoor environments.
String current up to 16A
Wide range of MPPT voltage
Remote diagnosis & update
24-hour smart energy management
Easy setup of smart operating mode
| *2Technical Data | ASG-80TL-ZH | ASG-100TL-ZH | ASG-125TL-ZH |
|---|---|---|---|
|
Rated voltage |
600V |
||
|
MPPT voltage range |
150-950V |
||
|
Max. input current |
8*42A |
10*42A |
|
|
Max.short circuit current |
8*65A |
10*65A |
|
|
MPPT number |
8 |
10 |
|
|
Max. input strings number |
8*2 | 10*2 | |
|
Max. charge / discharge current |
105A*3 |
||
|
Back-up switch time |
<10ms |
||
