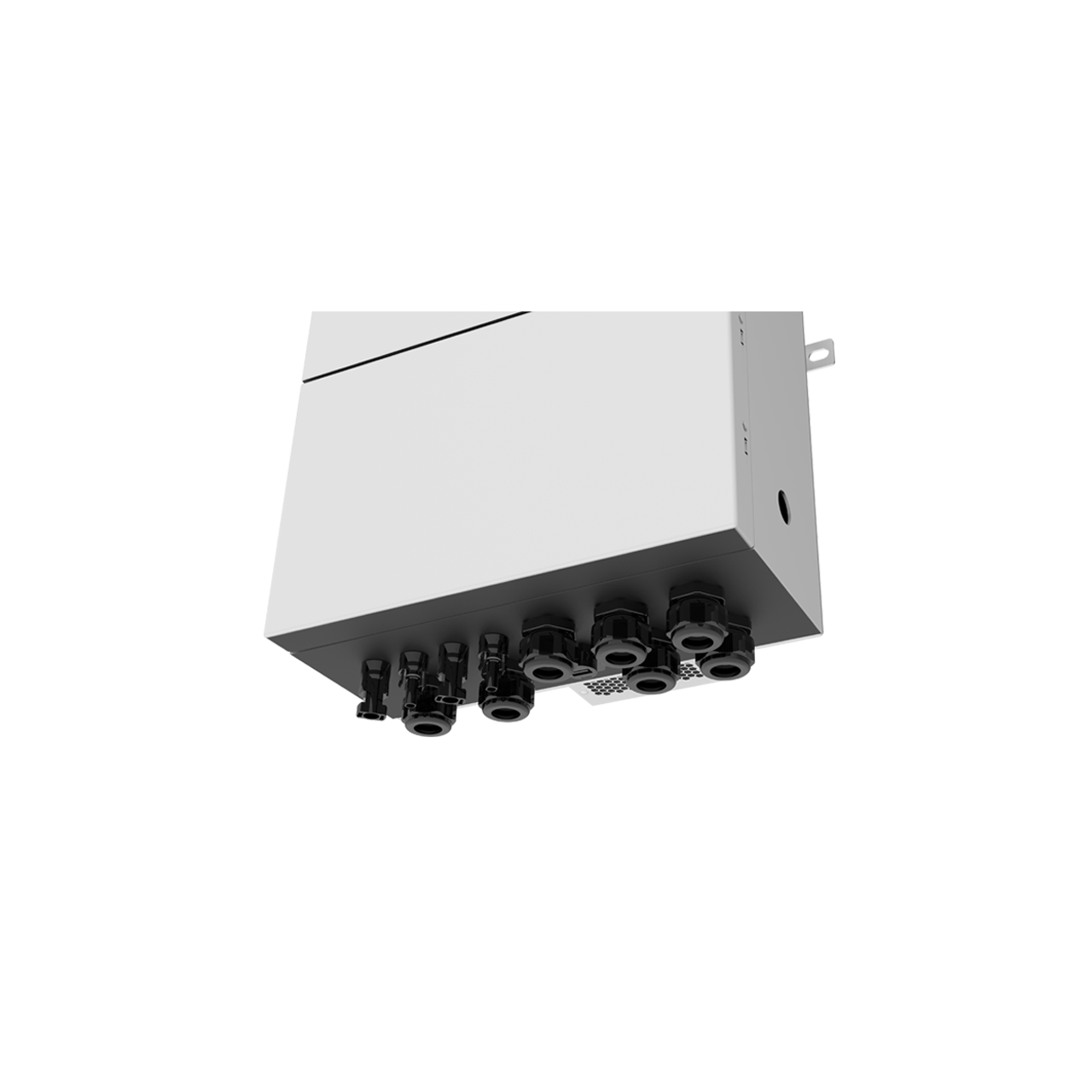

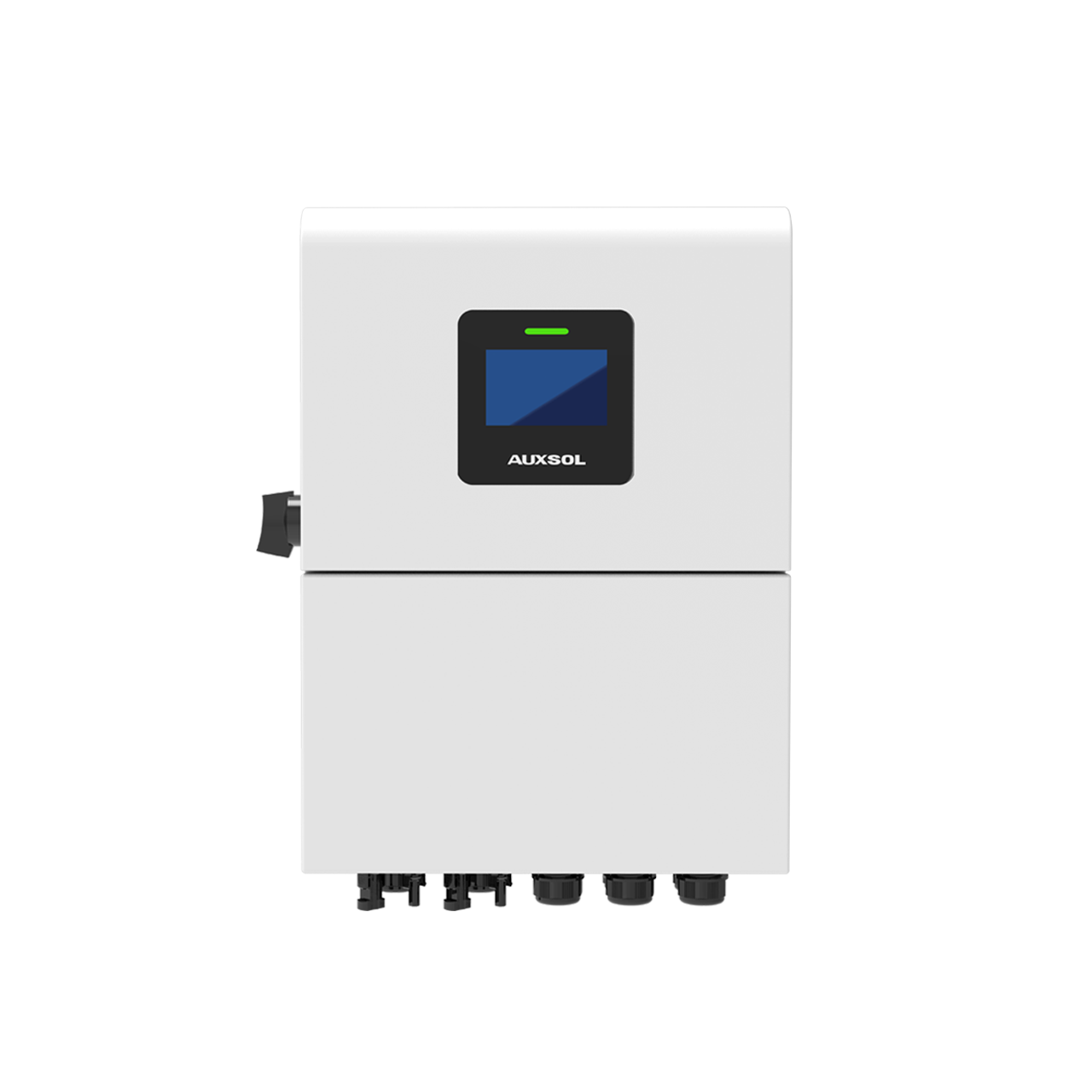

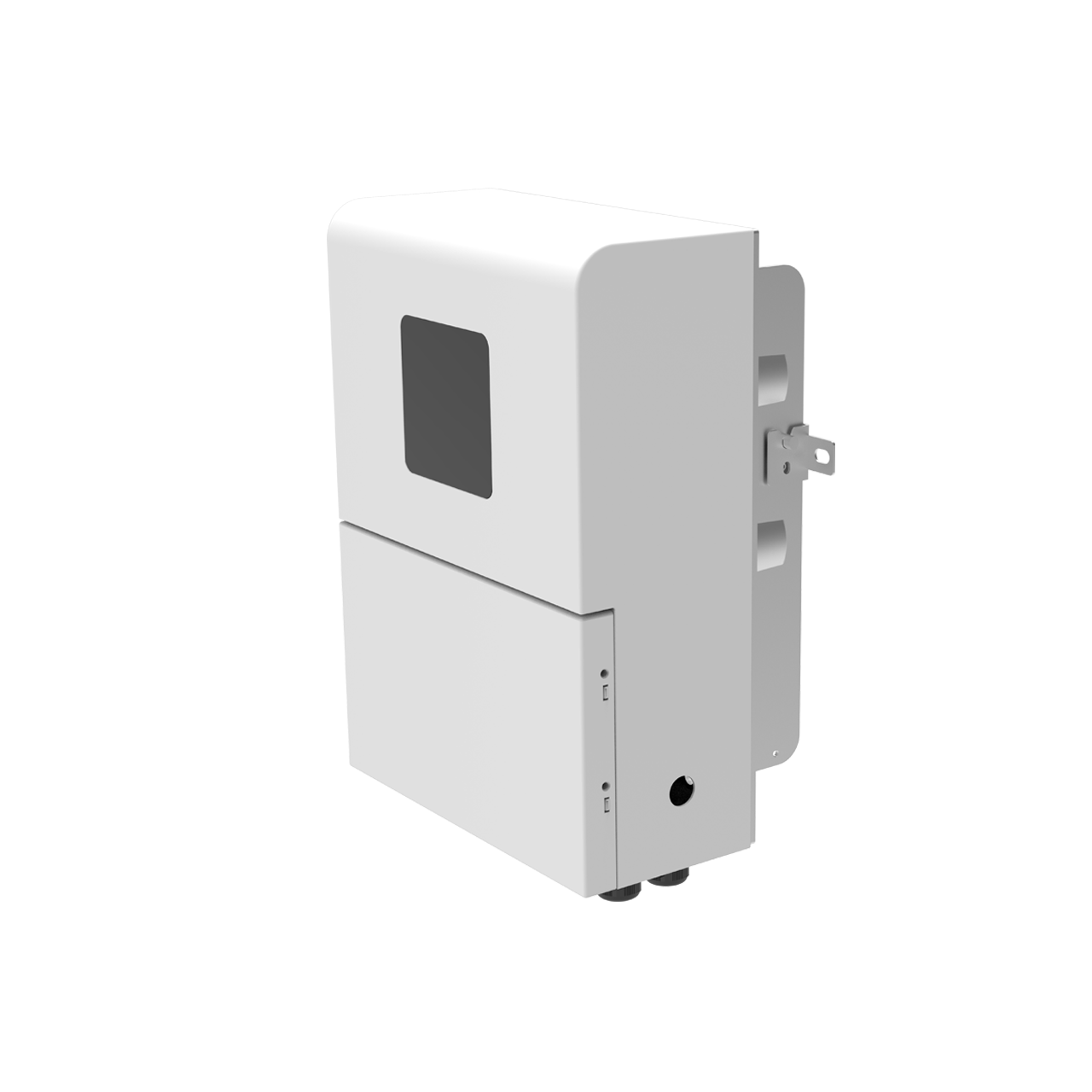

Compact and lightweight, the AUXSOL ASG series is the perfect choice for residential installations. The ASG series boasts excellent durability, an ultra-long lifespan under modern industrial standards, and an IP66 protection rating, suitable for indoor and outdoor environments.
Start-up voltage 60V
Remote diagnosis &update
Wide range of MPPT voltage
Easy setting of smart working modes
Max. efficiency 97.7%
| Technical Data |
ASG-3.6SL-ZL-G2
|
ASG-4SL-ZL-G2
|
ASG-5SL-ZL-G2
|
ASG-6SL-ZL-G2
|
| Rated voltage |
360V
|
|||
| MPPT voltage range | 90-450V | |||
| MPPT number | 2 | |||
| Max. input strings number | 2 | |||
| Battery voltage range | 40-60V | |||
| Max. charge / discharge current | 90A/90A | 100A/100A | 120A/120A | 135A/135A |
| Back-up switch time |
＜4ms
|
|||
| Rated output voltage | 220V/230V,L/N/PE | |||
