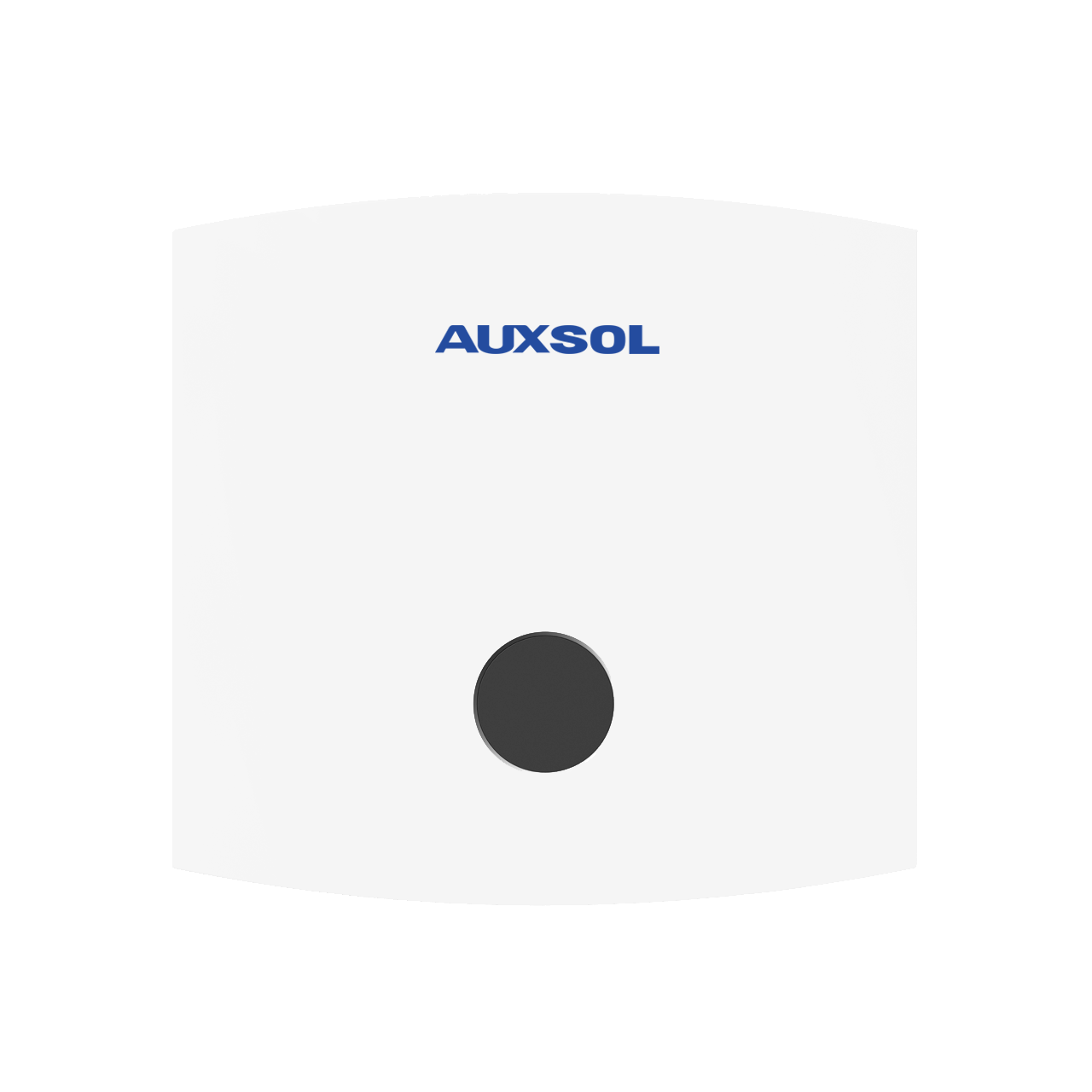

Compact and lightweight, the AUXSOL ASN series is the perfect choice for residential installations. The ASN series boasts excellent durability, an ultra-long lifespan under modern industrial standards, and an IP66 protection rating, suitable for indoor and outdoor environments.
High Efficiency
Max. MPPT current 32A, suitable for high-current/double-sided components
40V low start-up voltage enables early startup and more energy generation
Smart
Ultra-wide grid voltage design with automatic voltage regulation technology ensures uninterrupted operation even under unstable grid conditions
User-Friendly
Supports multiple communication methods: RS485, WiFi, 4G, LAN, SunSpec.
Safe and Reliable
IP66 protection rating, adaptable to harsh operating environments
Intelligent AFCI reduces fire risk
Economical and Cost-Saving
Compact and lightweight design for easy installation and maintenance
Supports high power component access, low system installation and cable costs
| Technical Data | ASN-10SL |
|---|---|
|
Start-up voltage |
40V |
|
MPPT voltage range |
40-550V |
|
Max. input current |
32A/16A |
|
MPPT number |
2 |
|
Max. input strings |
3 |
|
Rated output power |
10KW |
|
Rated grid output current |
45.5A |
|
Max. output current |
45.5A |
