Solar Inverter Setup: A Step-by-Step Guide for Efficient Solar Energy Use

2025-11-18 14:17:00.0

Solar energy is a leading sustainable power solution, and a proper solar inverter setup is vital to tapping its full potential. As the core of any solar system, the inverter turns DC power from solar panels into usable AC power. Whether you’re setting up a residential grid-tied system or a commercial and industrial setup, a structured approach guarantees safety, efficiency, and long-term performance. Below is a detailed guide to solar inverter setup, combining industry best practices with insights from trusted manufacturers like AUXSOL.

Understand Inverter Types to Match Your System

Picking the right inverter type is the first critical step in solar inverter setup. The wrong choice can lead to inefficiency or compatibility issues, so align your selection with your system’s needs.

String Inverters: A top choice for residential and small commercial and industrial setups, string inverters connect multiple solar panels in a "string" to a single unit. They’re budget-friendly, easy to install, and work well when panels are unshaded.
Microinverters: Installed directly behind individual solar panels, microinverters convert DC to AC right at the panel level.

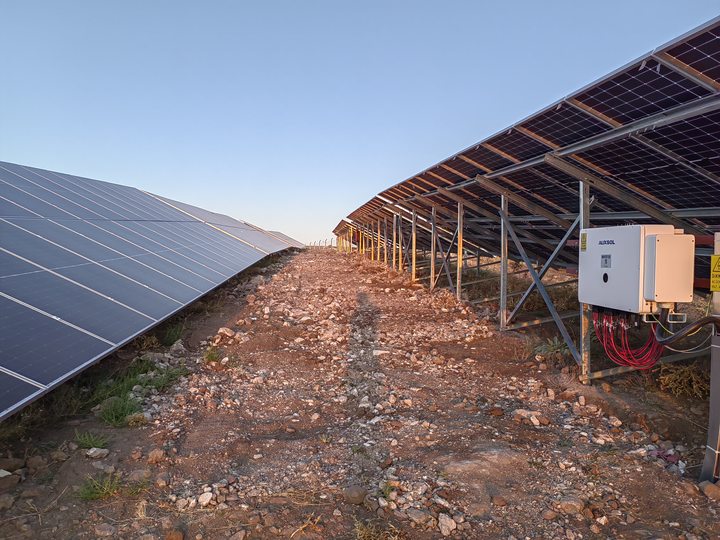

Central Inverters: Built for large-scale commercial and industrial projects, central inverters function like expanded string inverters, handling high power loads (50-350 kW) with ease. They balance affordability and efficiency, sitting between string inverters and microinverters in terms of cost. They’re designed for modular use, so you can tailor the setup to match project size—whether it’s a rooftop C&I system or an agro-photovoltaic complementary project.

Prepare for Solar Inverter Setup: Safety & Planning

Skipping proper preparation can lead to safety risks, installation mistakes, or reduced system performance. Take the time to lay the groundwork for a smooth setup.

Prioritize Safety: Always disconnect all power sources before starting work. Wear insulated gloves, safety glasses, and use insulated tools to prevent electrical shocks—solar panels generate DC power even in low light, so never handle wires carelessly. Avoid working in wet conditions, as moisture increases shock risk.
Comply with Local Rules: Most regions require permits for solar installations. Familiarize yourself with NEC standards (such as rapid shutdown features for grid-tied systems) and local electrical codes. If you’re unsure about compliance, consult a licensed electrician to avoid legal or safety issues.
Gather Tools & Compatible Components: You’ll need mounting brackets (ensure they’re sturdy enough for your inverter’s weight), DC/AC cables (match gauge to your inverter’s specs), a DC disconnect switch, an AC breaker, grounding wire, wire cutters, and a multimeter for testing. Stick to compatible parts—AUXSOL recommends MC4 connectors for DC terminals and quick-connect plugs for AC to ensure secure, efficient connections.
Choose the Optimal Location: Inverters work ideal in cool, dry, well-ventilated areas. Avoid direct sunlight (it can cause overheating and shorten lifespan) and place the inverter close to solar panels to minimize cable length (long cables lead to power loss). Popular spots include garages, utility rooms, or exterior walls with shading. Leave at least 6 inches of clearance around the inverter for airflow—this prevents overheating, especially during peak sunlight hours.

Step-by-Step Solar Inverter Setup Process

Follow these clear steps to install your inverter correctly, whether it’s a residential string model or a commercial and industrial central inverter.

Step 1: Mount the Inverter

First, secure the mounting brackets to a solid surface—use wall studs (not just plaster) for wall-mounted setups to ensure stability. Align the inverter with the brackets and fasten it tightly. Keep accessibility in mind: you’ll need to reach the inverter for maintenance, so avoid hard-to-reach spots.

Step 2: Connect Solar Panels to the Inverter

Solar panels can be wired in series (for higher voltage) or parallel (for higher current)—check your inverter’s manual to confirm compatibility. For series wiring, connect the positive terminal of one panel to the negative terminal of the next. For parallel wiring, link all positive terminals together and all negative terminals together. Route the DC cables from the panels to the inverter, matching positive (+) and negative (-) terminals exactly. Install the DC disconnect switch between the panels and inverter—this lets you safely cut power for maintenance.

Step 3: AC Wiring & Grid Connection

Next, connect the inverter’s AC output to your building’s electrical panel. Start by turning off the main AC breaker to avoid shocks. Install a dedicated AC breaker in the electrical panel for the inverter circuit—this protects against overloads. Then, connect the live (hot), neutral, and ground wires from the inverter to the corresponding terminals in the panel. For grid-tied systems, use a dual meter to feed excess power back to the grid.

Step 4: Ground the System

Grounding is non-negotiable for safety—it prevents electric shocks and protects equipment from damage. Connect the inverter’s ground terminal to your building’s grounding system using a grounding wire. Use a multimeter to check for proper grounding and ensure there’s no leakage current—this step is critical to passing safety inspections.

Step 5: Test the System

Before fully activating the system, double-check all connections to make sure they’re tight and free of debris. Turn on the DC disconnect switch, then power on the inverter. Monitor the inverter’s display (most models have LCD/LED screens or app connectivity) to confirm it’s receiving DC input from the panels and converting it to AC output.

Post-Setup Maintenance & Optimization Tips

Proper maintenance keeps your inverter running efficiently for years. Follow these tips to extend its lifespan and maximize energy production.

Monthly Inspections: Check the inverter monthly for dust, debris, or signs of damage (like cracks or corrosion). Clean the exterior with a dry cloth—never use water or harsh chemicals, as they can damage internal components.
Monitor Performance: Use your inverter’s monitoring features to track energy production, MPPT efficiency, and fault alerts. If you notice a drop in output or unusual error codes, address the issue promptly—small problems (like a loose wire) can become big ones if ignored.
Keep Panels Efficient: Solar panel performance directly impacts the inverter, so keep panels clean and free of shading. Trim trees or remove obstacles that block sunlight, especially during peak hours (10 AM–4 PM).
Update Firmware: Many inverters support remote OTA (over-the-air) upgrades. Keep the firmware updated to access new features, performance improvements, and bug fixes.

Why Choose AUXSOL for Your Solar Inverter Setup?

A reliable manufacturer simplifies solar inverter setup and ensures long-term performance. AUXSOL, a subsidiary of Sanxing Electric Ningbo, under AUX Group (est. 1986), has emerged as a powerhouse in the solar inverter sector for several reasons:

Certified Quality: AUXSOL’s inverters meet global standards, with certifications from ISO 9001 (quality management), ISO 14001 (environmental management), and VDE-AR-N 4105 (German grid standards). This ensures your setup is safe, efficient, and compliant worldwide.
Support Network: With 7 R&D centers, 15 manufacturing bases, and 11 overseas companies, AUXSOL offers local support in markets. The after-sales team is available to help with installation questions, maintenance, or repairs.

One-Stop Solutions: AUXSOL provides everything you need for solar inverter setup—from inverters to compatible batteries, monitoring tools, and even EV chargers. This eliminates compatibility issues and streamlines the setup process.
User-Friendly Design: All AUXSOL inverters are built for ease of use—compact, lightweight, and with silent operation. Even beginners can follow the installation manual, and remote monitoring makes post-setup management simple.

Final Thoughts on Solar Inverter Setup

Solar inverter setup doesn’t have to be complicated—with the right inverter type, careful planning, and adherence to safety steps, you can build a reliable solar system. Whether you’re a DIY installer or working with a professional, this guide gives you the foundation to get it right. By choosing a trusted brand like AUXSOL and maintaining your system regularly, you’ll enjoy sustainable, cost-effective energy for years.

Ready to start? AUXSOL’s range of inverters and support make solar inverter setup accessible for homes and businesses alike. Join the shift to green energy and power your space efficiently.
