If you’re new to solar power or planning a commercial & industrial PV system, you’ve probably heard the term string inverter thrown around. But what exactly is it, how does it work, and why is it the go-to choice for most on-grid rooftop and distributed solar projects? In this guide, we break down everything you need to know about on-grid string inverters.

What Is a String Inverter?

A string inverter (also called on-grid inverter) is a type of PV inverter that converts DC power generated by one or more strings of solar panels into grid-compliant AC power.

Unlike central inverters (for mega‑scale ground plants) or microinverters (per‑panel), string inverters are designed for scalable, modular, on-grid systems—making them ideal for residential, commercial and industrial rooftops, hillside sites, and agro‑PV/fishery‑PV projects.

Core Functions of an On-Grid String Inverter

Convert DC from PV panels to stable AC for grid or load use.
Maximize energy harvest via MPPT (Maximum Power Point Tracking).
Ensure safe grid connection with anti‑islanding, over/under voltage, and short‑circuit protection.
Monitor real‑time power generation, faults, and yield via APP/web portal.

Why Choose On-Grid String Inverters? Key Benefits

Wide Application Flexibility

Residential & small C&I: 3–25kW single/three‑phase strings.
Medium & large C&I: 50kW+ three‑phase strings for factories, warehouses, shopping malls.
Complex sites: Shaded roofs, uneven terrain, multiple orientations—string inverters minimize mismatch loss.

High Efficiency & Yield

Modern string inverters reach peak efficiency >98.5% and support 1.5x DC oversizing to capture more morning/evening sun.

Strong Reliability & Durability

IP65/IP66 outdoor-rated, wide temp tolerance (-30°C to +60°C), no derating at high temperatures, and long‑life film capacitors.

Easy Installation & Low O&M

Modular, lightweight, compact design; string‑level monitoring for fast fault location.

Grid Compatibility

Meets global grid codes (VDE‑AR‑N 4105, EN 50549‑1, IEC 61727, etc.) for stable grid‑tie performance.

Common FAQs About On-Grid String Inverters

Q1: String inverter vs. central inverter vs. microinverter—what’s the difference?

Type	Ideal For	Power Range	Pros
String Inverter	Rooftops, C&I, distributed PV	3–330kW	Balanced cost, efficiency, scalability
Central Inverter	Large ground PV plants	500kW+	Lowest $/W for utility scale
Microinverter	Shady roofs, small residential	200–800W per panel	Shade tolerance, panel‑level control

Q2: Do string inverters work with 182/210 large-format PV modules?

Yes. Modern high‑power string inverters support high input current per string (20A, 40A, even 48A) and wide MPPT voltage ranges to match large modules.

Q3: How long do on-grid string inverters last?

With proper maintenance, 15–25 years—in line with PV panel lifetimes. Key factors: quality components, cooling design, and protection systems.

Q4: Can I use string inverters in unstable grids?

Absolutely. Look for models with ultra‑wide voltage windows and automatic voltage regulation to keep running during grid fluctuations.

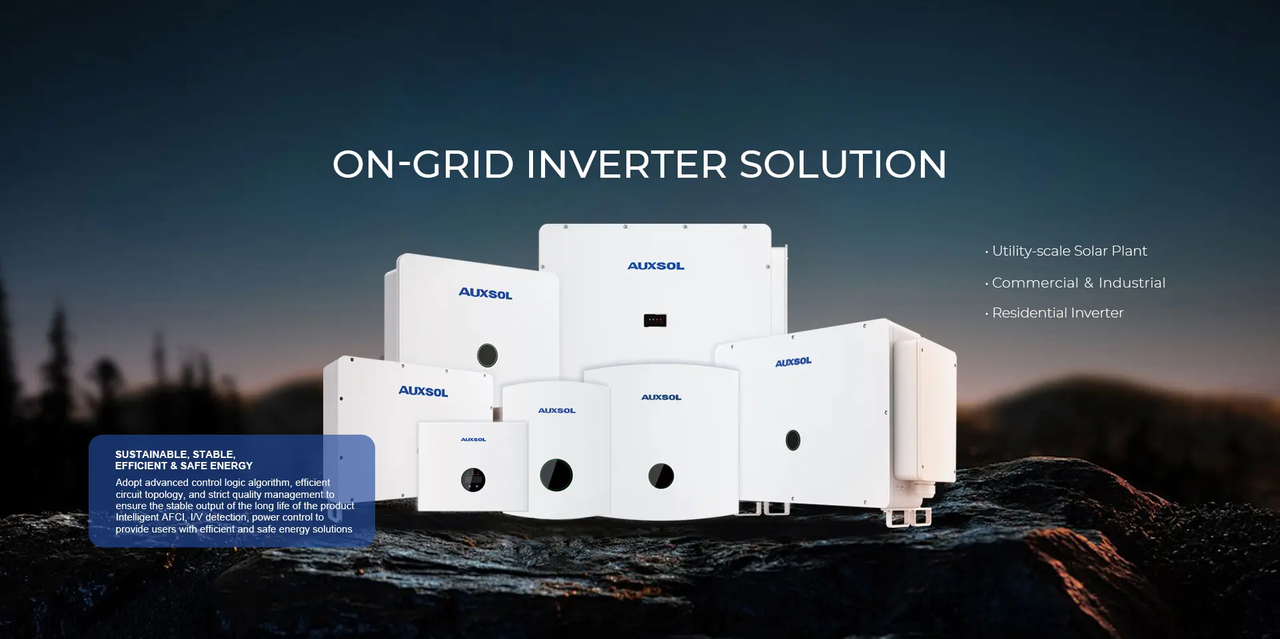

Meet AUXSOL ASN‑(50–80)TL‑G2: High‑Power On-Grid String Inverter for C&I

Built for C&I on-grid solar, the AUXSOL ASN‑(50–80)TL‑G2 series delivers high performance in a robust, easy‑to‑deploy package.

Key Specifications

Power range: 50kW – 80kW three‑phase on-grid
Max efficiency: Up to 98.6%
MPPT design: Multiple MPPTs, high current input, compatible with 210mm large modules
DC side: 1.5x oversizing supported; low start‑up voltage; wide MPPT range
AC side: 380V/400V; 50/60Hz; THDi <3%; PF = 1 (0.8 lead–lag)
Protection: IP66; anti‑islanding; DC/AC surge; AFCI (optional); temperature protection
Design: Fan cooling; 25‑year film capacitor lifespan; no derating at 45°C
Monitoring: LED + Bluetooth + APP; optional LCD; RS485, Wi‑Fi, 4G, LAN
Certifications: IEC, EN, VDE, INMETRO, CGC, etc.

Core Advantages

Ultra‑high efficiency maximizes ROI and annual yield.
Strong environmental adaptability operates reliably in harsh outdoor conditions.
Smart O&M with string monitoring and fast fault diagnosis.
Grid‑friendly complies with global standards for stable grid connection.
Long service life reduces replacement and maintenance costs.

Ideal Applications

Factory & warehouse rooftops
Commercial and industrial buildings & shopping centers
Agro‑PV & fishery‑PV systems
Medium‑scale distributed on-grid plants
Hillside & uneven‑terrain PV sites

Final Thoughts

On-grid string inverters are the backbone of modern distributed solar. They strike an excellent balance of efficiency, reliability, scalability, and cost—making them the first choice for residential and C&I on-grid projects alike.

If you’re designing a 50–80kW C&I on-grid system, the AUXSOL ASN‑(50–80)TL‑G2 series brings proven performance, smart features, and strong durability to boost your solar investment.
