Electricity powers nearly every aspect of modern life, from our homes to industries. While most of us are familiar with single-phase power that runs small appliances, three-phase power is the backbone of high-capacity energy distribution. But how does three phase power work? Let's break it down.
What Is Three Phase Power?
Three phase power is a type of electrical system consisting of three alternating current waveforms, each with the same frequency, equal voltage amplitude, and a 120° phase difference between them. This design originated from the need to transmit and use electricity more efficiently—especially for high-power applications.
How Three Phase Power Works: The Basics
At its core, three phase power is generated by an electric generator with three separate windings (coils) arranged 120° apart around a rotating magnet. As the magnet spins, each winding induces an AC voltage, but because of their physical separation, the voltage peaks in each winding occur at different times (120° apart in phase).
This phase difference is key: unlike single-phase power, which has voltage fluctuations (resulting in uneven power delivery), three phase power delivers a constant, steady flow of power. The combined power from the three phases never drops to zero, making it ideal for heavy-duty equipment, industrial machinery, and even modern homes with high energy demands (e.g., solar systems, EV chargers, or large HVAC units).
Applications of Three Phase Power
Three phase power is widely utilized across diverse sectors due to its unique properties, and it has become increasingly relevant in various types of households.
In residential environments with access to a three-phase supply, this setup is ideal for supporting higher electrical loads. For example, large households operating multiple refrigerators, air conditioners, washing machines, and other appliances at the same time benefit from more stable performance and reduced voltage fluctuations under a three-phase system. For homes with electric vehicles, a three-phase connection can significantly improve charging efficiency, enabling faster EV charging when permitted by the local grid.
In commercial and light industrial scenarios, three-phase systems are the standard for powering larger equipment and meeting higher energy demands. Applications range from small workshops and offices to rooftop solar systems on commercial buildings, where energy reliability and performance are critical.

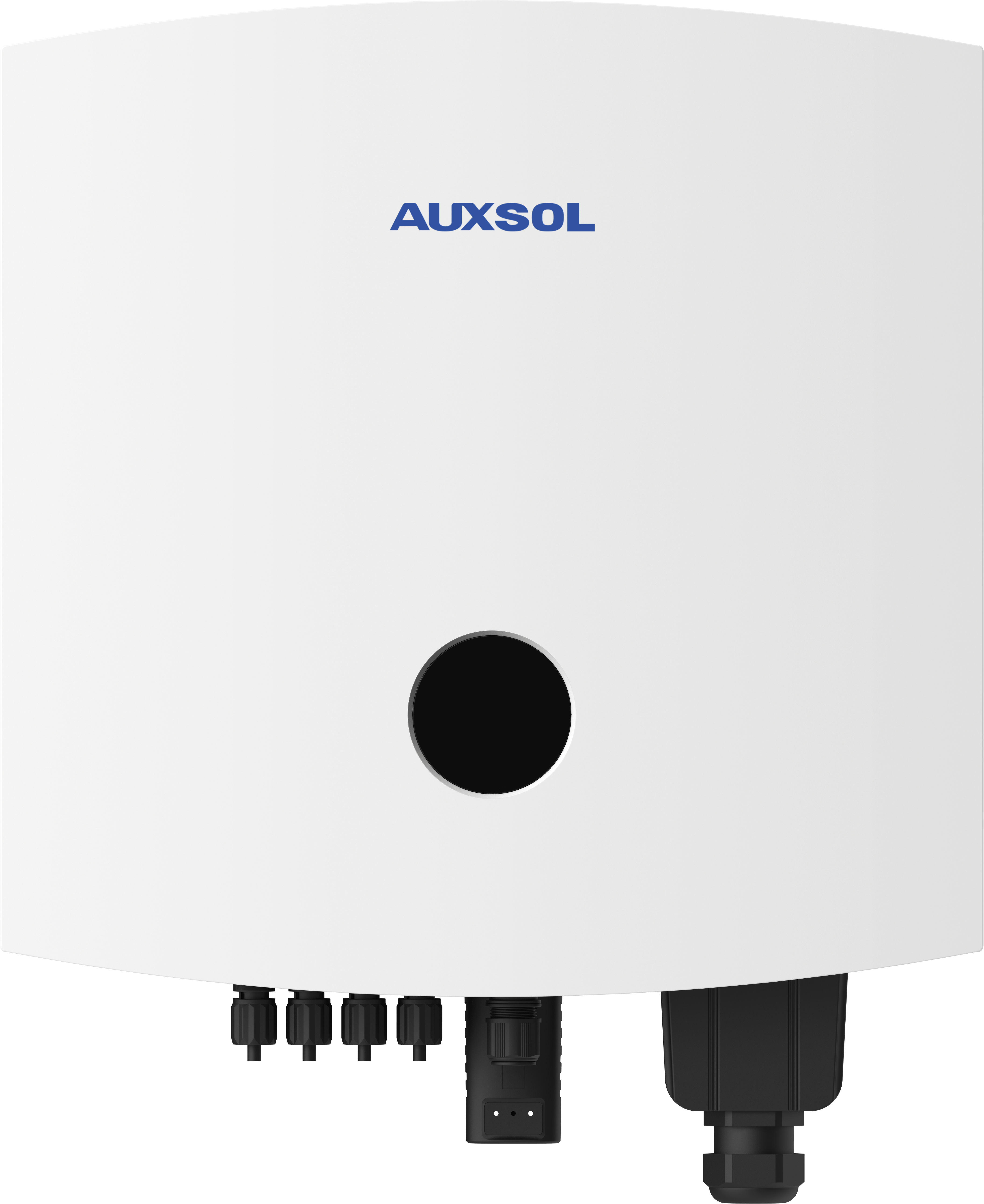

The AUXSOL ASN-(5-25)TL series of three-phase on-grid inverters is tailored for both residential and small-to-medium commercial applications where a three-phase power environment is present. With its durable design and dependable performance, the series fully harnesses the advantages of three-phase energy systems—delivering stable, efficient, and intelligent green power solutions to homes, offices, and commercial projects alike.
Key Features of the AUXSOL ASN-(5-25)TL Series
-
High Efficiency: Supports 1.5x DC/AC oversizing, allowing it to handle more power than its rated capacity, paired with a low 180V start-up voltage for earlier daily energy generation.
-
Smart Grid Adaptability: Its ultra-wide grid voltage range (178-276V phase voltage; 380-478V line voltage) and automatic voltage regulation ensure uninterrupted operation even when grid conditions are unstable—ideal for three-phase systems.
-
Safety & Reliability: With an IP66 protection rating, it thrives in harsh outdoor environments. Intelligent AFCI (Arc Fault Circuit Interrupter) reduces fire risks, and pure film capacitors with a 25-year design lifespan guarantee long-term performance.
-
Cost-Saving Design: Compact and lightweight for easy installation, it operates without power derating at 45°C, ensuring consistent yield even in high temperatures.
Technical Specifications
With max input power up to 32kW, features 2 MPPT trackers, supports up to 7 input strings, and handles a max input voltage of 1100V—making it flexible for various solar panel configurations in three-phase setups.
Conclusion
Understanding how three phase power works helps us appreciate its role in efficient energy distribution. For homes and small businesses leveraging three-phase systems, the AUXSOL ASN-(5-25)TL series inverter is a standout choice, combining reliability, efficiency, and smart design to maximize energy usage.
